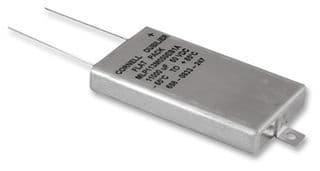

MLP821M250EB1A

820uF 250V Aluminum Electrolytic Capacitor, Radial, 172mR ESR, 3.8A Ripple

Standard aluminum electrolytic capacitor with 820µF capacitance and 250V DC rating. Features 20% tolerance, 0.172 Ohm ESR, and 3.8A ripple current capability. Designed for chassis mounting with radial screw terminals, operating from -55°C to 85°C with a 2000-hour life expectancy. Dimensions are 44.45mm (length) x 12.7mm (depth) x 76.2mm (height).

PackageRadial

Voltage250V

Capacitance820uF

Voltage Rating250V

Quick Jump:

Technical Specifications

Cornell Dubilier MLP821M250EB1A technical specifications.

General

Capacitance	820uF
Package/Case	Radial
Construction	RADIAL
Depth	12.7mm
Dielectric Material	Aluminium
ESR (Equivalent Series Resistance)	172mR
Height	12.7mm
Height - Seated (Max)	0.5inch
Lead Diameter	1.02mm
Lead Free	Contains Lead
Lead Pitch	1inch
Lead/Base Style	Straight
Leakage Current	2nA
Length	44.45mm
Life (Hours)	2000Hour
Max Operating Temperature	85°C
Min Operating Temperature	-55°C
Mount	Chassis Mount
Package Quantity	1
Packaging	Tray
Radiation Hardening	No
Reach SVHC Compliant	No
Ripple Current	3.8A
RoHS Compliant	No
Series	MLP
Termination	Radial
Tolerance	20%
Voltage	250V
Voltage Rating	250V
DC Rated Voltage	250V
Width	1.75inch
