Cornell Dubilier
PSU2530
Cap Aluminum Lytic 25uF 330VAC 20% (36.5125 X 85.725mm) Bracket Mount Dual Quick Connect 65°C
PackageRadial
Capacitance25uF
Voltage Rating330V
MountingChassis Mount
Quick Jump:
Technical Specifications
Cornell Dubilier PSU2530 technical specifications.
General
| Capacitance | 25uF |
| Package/Case | Radial |
| Diameter | 36mm |
| Dielectric Material | Aluminium |
| Height | 85.7mm |
| Lead Pitch | 0.5inch |
| Length | 86mm |
| Max Operating Temperature | 65°C |
| Min Operating Temperature | -40°C |
| Mount | Chassis Mount |
| Package Quantity | 1 |
| Packaging | Bulk |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | PSU |
| Termination | Tab |
| Tolerance | 20% |
| Voltage Rating | 330V |
| Voltage Rating (AC) | 330V |
Compliance
| RoHS | Compliant |
Datasheet
Cornell Dubilier PSU2530 Datasheet
Download the complete datasheet for Cornell Dubilier PSU2530 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

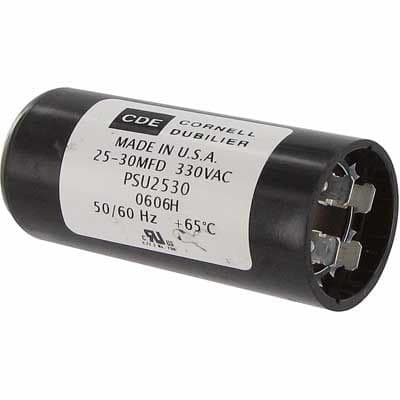

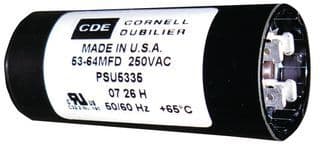

Product Images
