Cornell Dubilier
PSU8815
Cap Aluminum Lytic 88uF 110VAC/125VAC 20% (36.51 X 69.85mm) Bracket Mount Dual Quick Connect 65°C
PackageRadial
Capacitance88uF
Voltage Rating125V
MountingChassis Mount
Quick Jump:
Technical Specifications
Cornell Dubilier PSU8815 technical specifications.
General
| Capacitance | 88uF |
| Package/Case | Radial |
| Diameter | 36mm |
| Dielectric Material | Aluminium |
| Height | 69.9mm |
| Height - Seated (Max) | 2.81inch |
| Lead Pitch | 0.5inch |
| Length | 70mm |
| Max Operating Temperature | 65°C |
| Min Operating Temperature | -40°C |
| Mount | Chassis Mount |
| Package Quantity | 19 |
| Packaging | Bulk |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | PSU |
| Termination | Tab |
| Tolerance | 10% |
| Voltage Rating | 125V |
| Voltage Rating (AC) | 110V |
Compliance
| RoHS | Compliant |
Datasheet
Cornell Dubilier PSU8815 Datasheet
Download the complete datasheet for Cornell Dubilier PSU8815 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

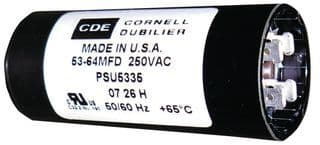

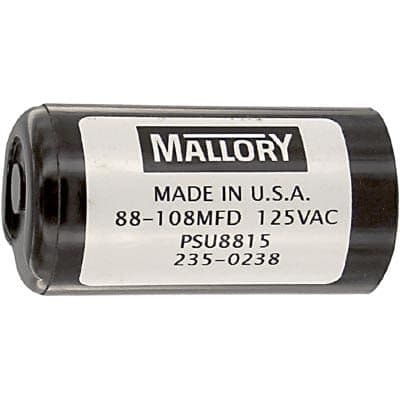

Product Images
