100W AC-DC regulated power supply module featuring dual outputs: 5V at 5A and 24V at 4A. This board mount DC/DC converter offers 3kV isolation voltage and operates efficiently at 80% with a wide temperature range of -10°C to 70°C. Approvals include UL, VDE, IEC, and EN, with lead-free and RoHS compliance. The unit is designed for panel mounting and measures 222mm x 75mm x 32mm, weighing 420g.
Package120
MountingPanel
Power100W
Quick Jump:
Technical Specifications
Cosel LEB100F-0524 technical specifications.
General
Approvals
UL, VDE, IEC, EN
Package/Case
120
Current - Output 1
5A
Current - Output 2
4A
Depth
32mm
Efficiency
80%
Height
32mm
Isolation Voltage
3kV
Lead Free
Lead Free
Length
222mm
Max Operating Temperature
70°C
Min Operating Temperature
-10°C
Mount
Panel
Number of Outputs
2
Output Current
5A
Output Power
100W
Output Voltage
24V
Package Quantity
21
Packaging
Bulk
RoHS Compliant
Yes
Series
LEB
Voltage - Output 1
5V
Voltage - Output 2
24V
Weight
420g
Width
75mm
Compliance
RoHS
Compliant
Datasheet
Cosel LEB100F-0524 Datasheet
Download the complete datasheet for Cosel LEB100F-0524 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

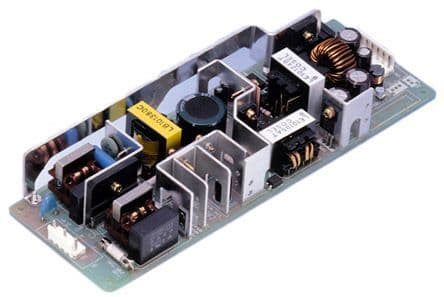

Product Images
