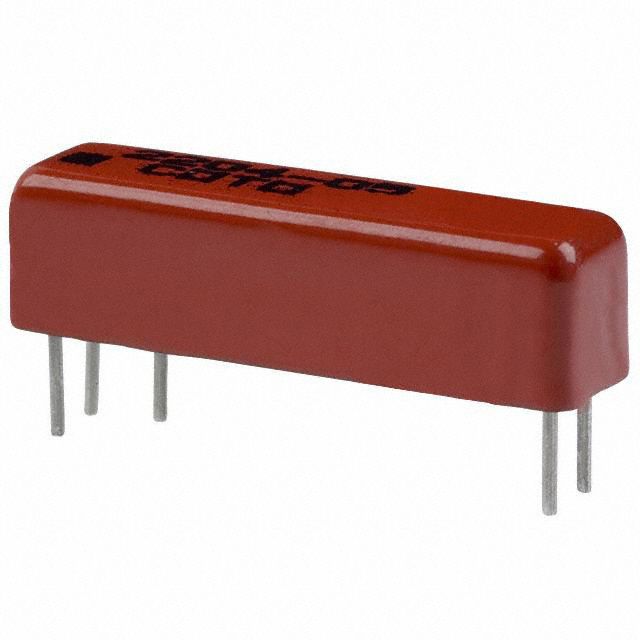

SPST-NO reed relay featuring a 5VDC coil voltage and 150 Ohm coil resistance, drawing 33.3mA. This through-hole mount component offers a 500mA contact current rating with Ruthenium contacts and a 0.55ms operate time. Designed for PCB applications, it measures 20.57mm in width, 20.6mm in length, and 5.72mm in height, with a 2.54mm lead pitch. Operating temperature range is -20°C to 85°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Coto 2200-2302 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | DIP |
| Coil Current | 33.3mA |
| Coil Resistance | 150R |
| Coil Type | Non-Latching |
| Coil Voltage (DC) | 5V |
| Contact Current Rating | 500mA |
| Contact Material | Ruthenium |
| Height | 5.72mm |
| Lead Free | Lead Free |
| Lead Pitch | 2.54mm |
| Length | 20.6mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -20°C |
| Mount | Through Hole, PCB |
| Number of Poles | 1 |
| Operate Time | 0.55ms |
| Packaging | Rail/Tube |
| Reach SVHC Compliant | No |
| Release Time | 0.1ms |
| Row Spacing | 2.54mm |
| Series | 2200 |
| Termination | PC Pin |
| Throw Configuration | SPST |
| Width | 20.57mm |
| RoHS | Compliant |
