The 2300 Series Reed Relay features a non-latching coil with a resistance of 175 ohms and a current of 28.6mA at 5V DC. It has a contact material of ruthenium and a switching voltage of 200V. The relay operates between -20°C and 85°C and has an operate time of 0.5ms and a release time of 0.15ms. It is packaged in a rail/ tube configuration with 50 units per package and is compliant with RoHS regulations.
MountingThrough Hole
Quick Jump:
Technical Specifications
Coto 2332-05-010 technical specifications.
General
| Coil Current | 28.6mA |
| Coil Resistance | 175R |
| Coil Type | Non-Latching |
| Coil Voltage (DC) | 5V |
| Contact Current Rating | 500mA |
| Contact Material | Ruthenium |
| Height | 9.4mm |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -20°C |
| Mount | Through Hole |
| Operate Time | 0.5ms |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Reach SVHC Compliant | No |
| Release Time | 0.15ms |
| RoHS Compliant | Yes |
| Series | 2300 |
| Switching Voltage | 200V |
| Termination | PC Pin |
| Throw Configuration | DPST |
| Width | 5.33mm |
Compliance
| RoHS | Compliant |
Datasheet
Coto 2332-05-010 Datasheet
Download the complete datasheet for Coto 2332-05-010 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

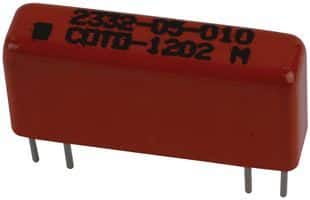

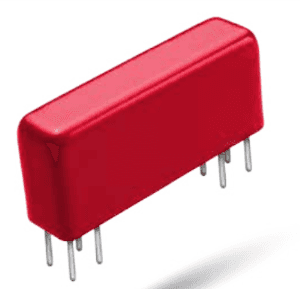

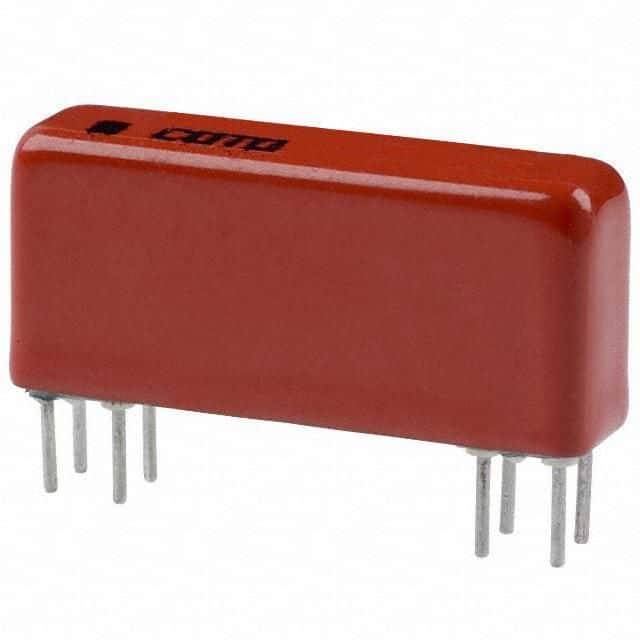

Product Images
