Single Color LED emitter, blue, featuring a clear, round lens and a T-1 3/4 (5mm) plastic package. This through-hole component operates with a 30mA forward current, a 5V reverse voltage, and dissipates 120W. It offers a luminous intensity of 7065mcd with a 30° viewing angle and a 480nm wavelength. Operating temperature range is -40°C to 95°C, and the product is RoHS compliant.
PackageRadial
MountingThrough Hole
Power120W
Quick Jump:
Technical Specifications
Cree C503B-BCN-CV0Z0461 technical specifications.
General
Package/Case
Radial
Color
Blue
Depth
5.8mm
Forward Current
30mA
Height
8.6mm
Length
5.8mm
Lens Color
Colorless
Lens Style
Round
Lens Transparency
Clear
Luminous Intensity
7065mcd
Max Operating Temperature
95°C
Min Operating Temperature
-40°C
Mount
Through Hole
Number of Elements
1
Number of LEDs
1
Package Quantity
500
Packaging
Bulk
Power Dissipation
120W
Radiation Hardening
No
Reach SVHC Compliant
Unknown
Reverse Voltage
5V
RoHS Compliant
Yes
Viewing Angle
30°
Wavelength
480nm
Compliance
RoHS
Compliant
Datasheet
Cree C503B-BCN-CV0Z0461 Datasheet
Download the complete datasheet for Cree C503B-BCN-CV0Z0461 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

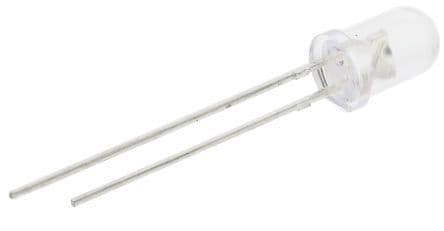

Product Images
