PackageRadial
MountingThrough Hole
Quick Jump:
Technical Specifications
Cree C503B-BCN-CV0Z0462 technical specifications.
General
Package/Case
Radial
Color
Blue
Forward Current
20mA
Height
10.3mm
Illumination Color
Blue
Lens Color
Colorless
Lens Style
Dome, Round
Lens Transparency
Clear
Luminous Intensity
7065mcd
Max Operating Temperature
95°C
Min Operating Temperature
-40°C
Mount
Through Hole
Number of LEDs
1
Package Quantity
2500
Packaging
Tape and Reel
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Viewing Angle
30°
Wavelength
470nm
Compliance
RoHS
Compliant
Datasheet
Cree C503B-BCN-CV0Z0462 Datasheet
Download the complete datasheet for Cree C503B-BCN-CV0Z0462 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

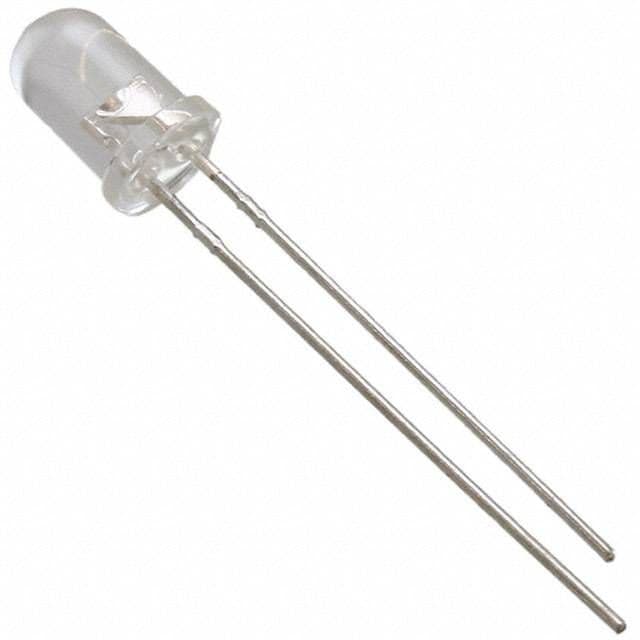

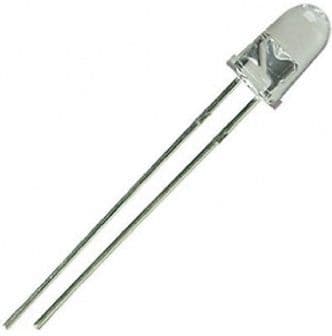

Product Images
