PackageRadial
MountingThrough Hole
Quick Jump:
Technical Specifications
Cree C503B-RCS-CW0Z0AA1 technical specifications.
General
Package/Case
Radial
Color
Red
Forward Current
20mA
Height
12.6mm
Illumination Color
Red
Lens Color
Colorless
Lens Style
Dome, Round
Lens Transparency
Clear
Luminous Intensity
7500mcd
Max Operating Temperature
100°C
Min Operating Temperature
-40°C
Mount
Through Hole
Number of LEDs
1
Package Quantity
500
Packaging
Bulk
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
C
Viewing Angle
30°
Wavelength
630nm
Compliance
RoHS
Compliant
Datasheet
Cree C503B-RCS-CW0Z0AA1 Datasheet
Download the complete datasheet for Cree C503B-RCS-CW0Z0AA1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

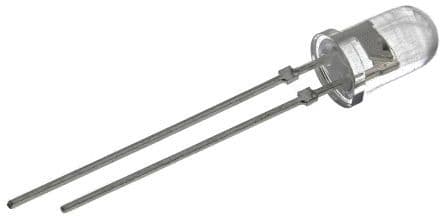

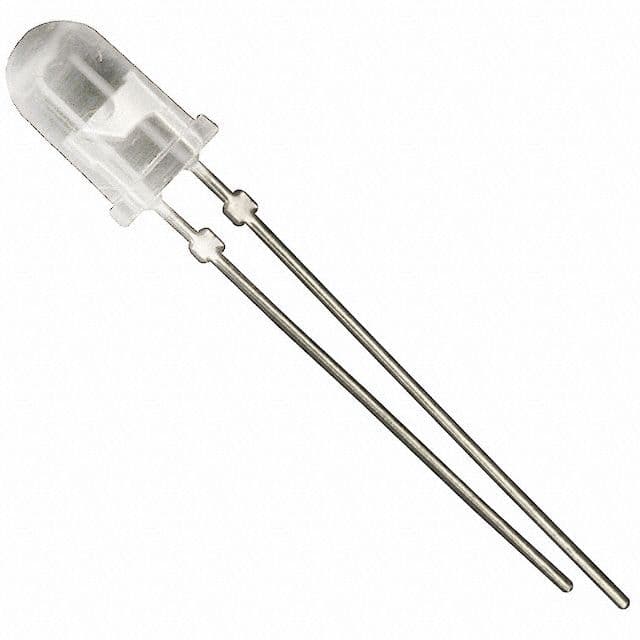

Product Images
