Surface mount single color LED emitter, cool white illumination. Features a PLCC package with a rectangular lens style and a 120° viewing angle. Operates with a forward current of 30mA, a maximum current rating of 80mA, and a reverse voltage of 5V. Delivers 9.6lm luminous flux and 3177mcd luminous intensity with a CRI of 75 and CCT of 8300K. RoHS compliant, with an operating temperature range of -40°C to 100°C.
PackagePLCC
MountingSurface Mount
Quick Jump:
Technical Specifications
Cree CLA1B-WKW-XE0F0E13 technical specifications.
General
Package/Case
PLCC
Color
White
Color Rendering Index (CRI)
75
Correlated Color Temperature (CCT)
8300K
Depth
3.2mm
Forward Current
30mA
Illumination Color
White
Length
2.8mm
Lens Style
Rectangular
Luminous Flux
9.6lm
Luminous Intensity
3177mcd
Max Current Rating
80mA
Max Operating Temperature
100°C
Min Operating Temperature
-40°C
Mount
Surface Mount
Number of Elements
1
Package Quantity
2000
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
Unknown
Reverse Voltage
5V
RoHS Compliant
Yes
Series
CLA1B-WKW/MKW
Thermal Resistance of Package
120°C/W
Viewing Angle
120°
Compliance
RoHS
Compliant
Datasheet
Cree CLA1B-WKW-XE0F0E13 Datasheet
Download the complete datasheet for Cree CLA1B-WKW-XE0F0E13 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

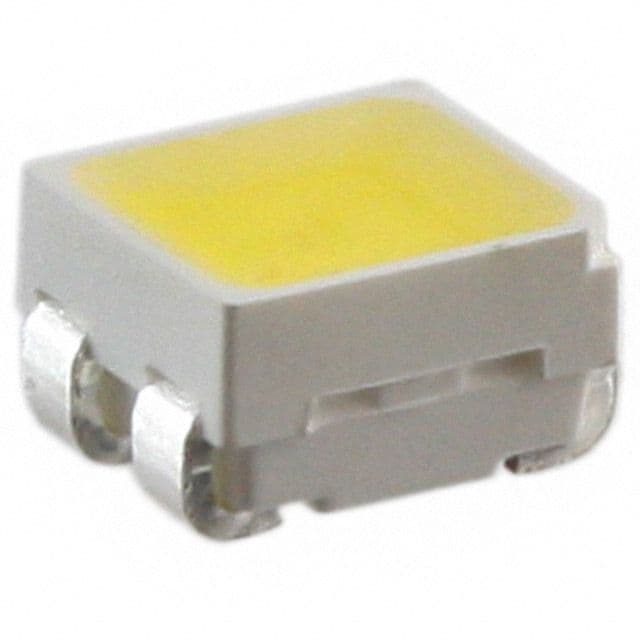

Product Images
