Cree
CLV1A-FKB-CJ1M1F1BB7R4S3
Triple Color LED, Red/green/blue, 3.20 X 2.80 MM, ROHS COMPLIANT, PLASTIC, SMD, LCC-4
PackagePLCC
MountingSurface Mount
Quick Jump:
Technical Specifications
Cree CLV1A-FKB-CJ1M1F1BB7R4S3 technical specifications.
General
Package/Case
PLCC
Color
Blue, Green, Red
Depth
3.2mm
Forward Current
20mA
Height
2.1mm
Length
2.8mm
Lens Color
White
Lens Style
Round, Flat, Diffused
Lens Transparency
Diffused
Luminous Intensity
337mcd
Max Operating Temperature
100°C
Min Operating Temperature
-40°C
Mount
Surface Mount
Number of Elements
3
Number of LEDs
1
Package Quantity
2000
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
Unknown
Reverse Voltage
5V
RoHS Compliant
Yes
Viewing Angle
120°
Width
2.8mm
Compliance
RoHS
Compliant
Datasheet
Cree CLV1A-FKB-CJ1M1F1BB7R4S3 Datasheet
Download the complete datasheet for Cree CLV1A-FKB-CJ1M1F1BB7R4S3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

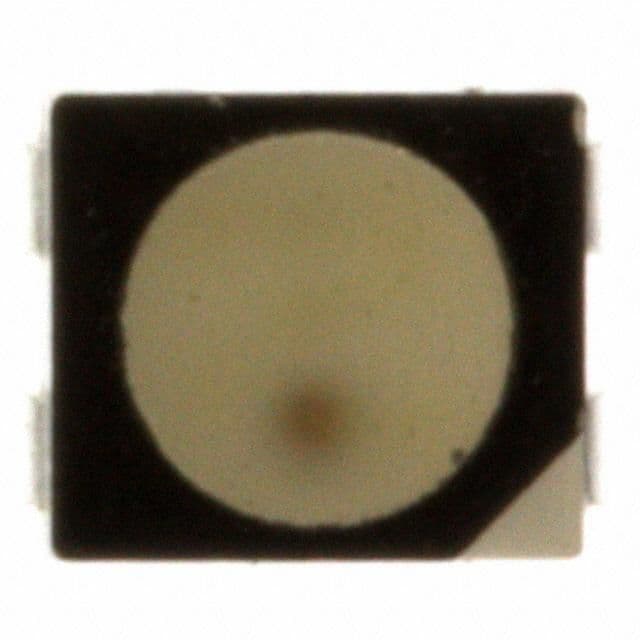

Product Images
