Single color LED emitter, red illumination, featuring a T1-1/2 (4mm) lens with a colorless, clear, round flat dome style. This through-hole mounted component operates with a forward current of 70mA, a reverse voltage of 5V, and a power dissipation of 210W. It offers a luminous flux of 7 lumens and a wide 120° viewing angle, with a peak wavelength of 630nm. The plastic DIP package measures 7.6mm in length, width, and depth, with a height of 7mm, and is RoHS compliant, operating between -40°C and 100°C.
PackageDIP
MountingThrough Hole
Power210W
Quick Jump:
Technical Specifications
Cree CP42B-RKS-CL0P0AA4 technical specifications.
General
Package/Case
DIP
Color
Red
Depth
7.6mm
Forward Current
70mA
Height
7mm
Illumination Color
Red
Length
7.6mm
Lens Color
Colorless
Lens Size
4mm
Lens Style
Round, Flat, Dome
Lens Transparency
Clear
Luminous Flux
7lm
Max Operating Temperature
100°C
Min Operating Temperature
-40°C
Mount
Through Hole
Number of Elements
1
Number of LEDs
1
Packaging
Rail/Tube
Power Dissipation
210W
Radiation Hardening
No
Reach SVHC Compliant
Unknown
Reverse Voltage
5V
RoHS Compliant
Yes
Viewing Angle
120°
Wavelength
630nm
Width
7.6mm
Compliance
RoHS
Compliant
Datasheet
Cree CP42B-RKS-CL0P0AA4 Datasheet
Download the complete datasheet for Cree CP42B-RKS-CL0P0AA4 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

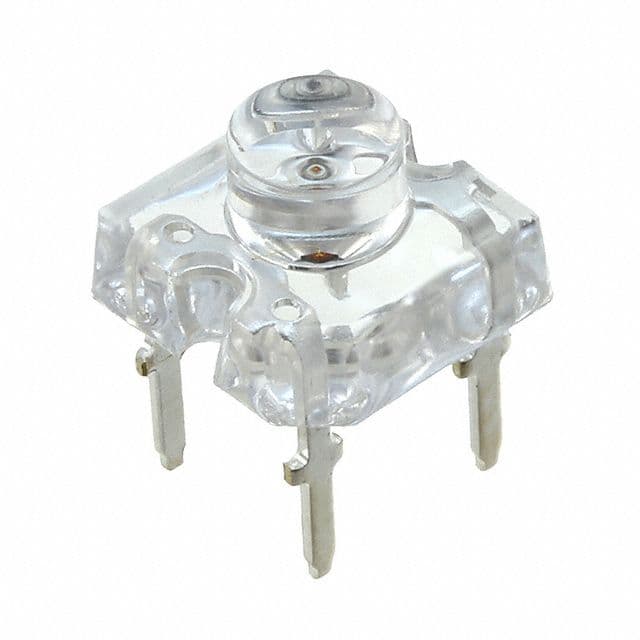

Product Images
