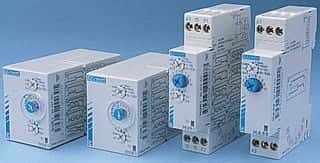

DPDT plug-in timer with 2 contacts, featuring a 10A current rating and 8A contact current rating with silver contact material. Operates across a wide voltage range from 24V AC to 240V AC, with a nominal input voltage of 240V AC and a DC rated voltage of 24V. This multi-range timer is socketable and plug-in mountable, with dimensions of 45mm (L) x 35mm (W) x 78mm (D), and a temperature range of -20°C to 60°C. Approvals include UL, CSA, and CE.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Crouzet 88867455 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Approvals | UL, CSA, CE |
| Contact Current Rating | 8A |
| Contact Material | Silver |
| Current Rating | 10A |
| Depth | 78mm |
| Height | 45mm |
| Length | 45mm |
| Max Current Rating | 8A |
| Max Operating Temperature | 60°C |
| Min Operating Temperature | -20°C |
| Max Supply Voltage (AC) | 240V |
| Min Supply Voltage (AC) | 24V |
| Mount | Socketable, Plug-In, Socket |
| Nominal Input Voltage | 240V |
| Number of Contacts | 2 |
| Operating Supply Voltage | 240V |
| Package Quantity | 1 |
| Packaging | Bulk |
| Reach SVHC Compliant | Unknown |
| Series | PL2R1 |
| Termination | Plug |
| Throw Configuration | DPDT |
| Voltage Rating (AC) | 250V |
| DC Rated Voltage | 24V |
| Width | 35mm |
| RoHS | Compliant |
