AC output solid-state relay (SSR) with a 25A load current rating and 280V AC maximum output voltage. Features a 280V AC control voltage input with 6mA input current and 21.7kΩ input impedance. Offers 4kV isolation voltage and 1mA leakage current. Operates within a -40°C to 80°C temperature range and includes UL, CSA, VDE, and CE approvals. Panel or screw mountable with screw termination.
Current Rating25A
MountingPanel, Screw
Quick Jump:
Technical Specifications
Crydom CWA2425 technical specifications.
General
Approvals
UL, CSA, VDE, CE
Contact Material
Silver
Control Voltage
280V
Current Rating
25A
Depth
58.4mm
Height
33mm
Input Current
6mA
Input Impedance
21.7kR
Input Type
AC
Isolation Voltage
4kV
Isolation Voltage-Max
4kV
Lead Free
Lead Free
Leakage Current
1mA
Length
58.4mm
Load Current
25A
Max Operating Temperature
80°C
Min Operating Temperature
-40°C
Max Output Voltage
280V
Max Supply Voltage
280V
Min Supply Voltage
24V
Max Surge Current
600A
Mount
Panel, Screw
Output Current
25A
Output Voltage
280V
Package Quantity
10
Radiation Hardening
No
Reach SVHC Compliant
No
RMS Current (Irms)
25A
RoHS Compliant
Yes
Series
CW24
Termination
Screw
Throw Configuration
SPST
Voltage Rating (AC)
280V
Width
45.7mm
Compliance
RoHS
Compliant
Datasheet
Crydom CWA2425 Datasheet
Download the complete datasheet for Crydom CWA2425 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

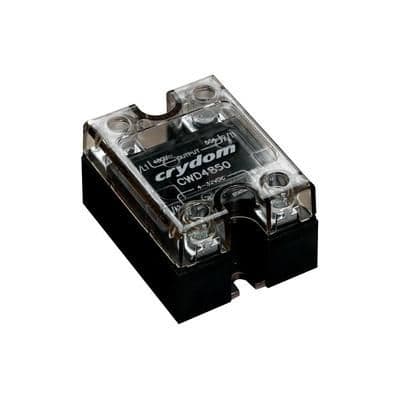

Product Images
