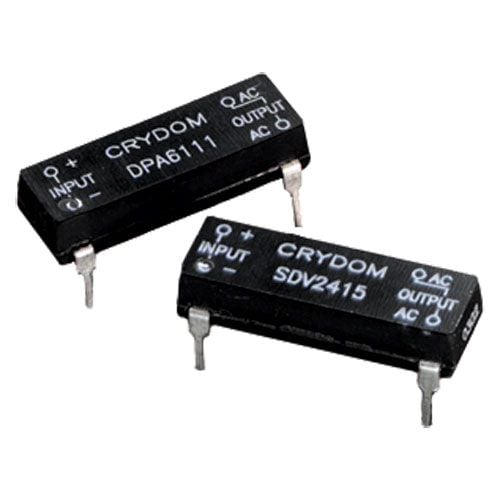

Solid State Relay (SSR) with 1A AC output and 10V DC input control. Features a 140V AC maximum output voltage and 1A load current rating. This SPST relay offers 3.75kV isolation voltage and operates within a -30°C to 80°C temperature range. The component is RoHS compliant and housed in a 16-pin DIP package suitable for PCB through-hole mounting.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Crydom DPA4119 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Approvals | UL, CSA, CE |
| Capacitance | 2pF |
| Package/Case | DIP |
| Control Voltage | 10V |
| Current Rating | 1A |
| Height | 4.83mm |
| Input Current | 15mA |
| Input Type | DC |
| Isolation Voltage | 3.75kV |
| Isolation Voltage-Max | 3.75kV |
| Lead Free | Lead Free |
| Length | 21.6mm |
| Load Current | 1A |
| Max Input Voltage | 10V |
| Max Operating Temperature | 80°C |
| Min Operating Temperature | -30°C |
| Max Output Current | 1A |
| Max Output Voltage | 140V |
| Max Supply Voltage (AC) | 140V |
| Min Supply Voltage (AC) | 20V |
| Max Voltage Rating (AC) | 140V |
| Mount | Through Hole, PCB |
| Output Current | 1A |
| Output Voltage | 140V |
| Package Quantity | 22 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Relay Type | Relay |
| RoHS Compliant | Yes |
| Series | DPA |
| Termination | Solder |
| Throw Configuration | SPST |
| Voltage Rating (AC) | 140V |
| Width | 6.73mm |
| RoHS | Compliant |
