AC & DC Output Solid State Relay (SSR) featuring a 5A, 280V AC output rating and a 32V DC control input. This SPST relay offers a 6.9mA maximum input current and 3.75kV isolation voltage. Designed for socket, DIN rail, or plug-in mounting, it operates within a -30°C to 80°C temperature range and is RoHS compliant. Approvals include cULus and IEC.
Current Rating5A
MountingSocket, DIN Rail, Plug-In
Quick Jump:
Technical Specifications

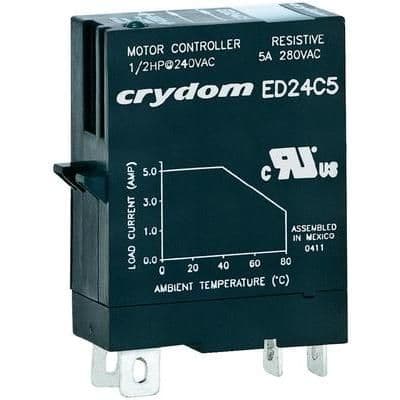

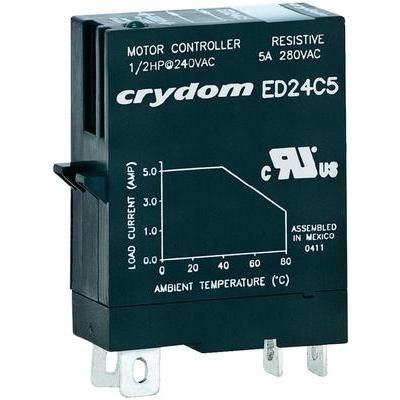

Crydom ED24C5 technical specifications.
General
| Approvals | cULus, IEC |
| Control Voltage | 32V |
| Current Rating | 5A |
| Depth | 12.7mm |
| Height | 38.4mm |
| Input Type | DC |
| Isolation Voltage | 3.75kV |
| Lead Free | Lead Free |
| Length | 29mm |
| Load Current | 5A |
| Max Input Current | 6.9mA |
| Max Operating Temperature | 80°C |
| Min Operating Temperature | -30°C |
| Max Output Current | 5A |
| Max Output Voltage | 280V |
| Max Supply Voltage (AC) | 280V |
| Min Supply Voltage (AC) | 24V |
| Max Voltage Rating (AC) | 280V |
| Mount | Socket, DIN Rail, Plug-In |
| Mounting Style | SOCKET |
| Output Current | 5A |
| Output Voltage | 280V |
| Package Quantity | 10 |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | ED |
| Termination | Quick Connect |
| Throw Configuration | SPST |
| Turn-On Delay Time | 8.33ms |
| Voltage Rating (AC) | 280V |
| Weight | 1oz |
| Width | 12.7mm |
