PackageModule
Current Rating25A
MountingChassis Mount, Screw
Quick Jump:
Technical Specifications
Crydom F1827D1000 technical specifications.
General
Average Rectified Current
25A
Package/Case
Module
Current Rating
25A
Forward Current
25A
Lead Free
Lead Free
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Repetitive Reverse Voltage (Vrrm)
1kV
Max Reverse Voltage (DC)
1kV
Mount
Chassis Mount, Screw
Package Quantity
5
Packaging
Bulk
Peak Non-Repetitive Surge Current
400A
RoHS Compliant
Yes
Series
F18
DC Rated Voltage
1kV
Compliance
RoHS
Compliant
Datasheet
Crydom F1827D1000 Datasheet
Download the complete datasheet for Crydom F1827D1000 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

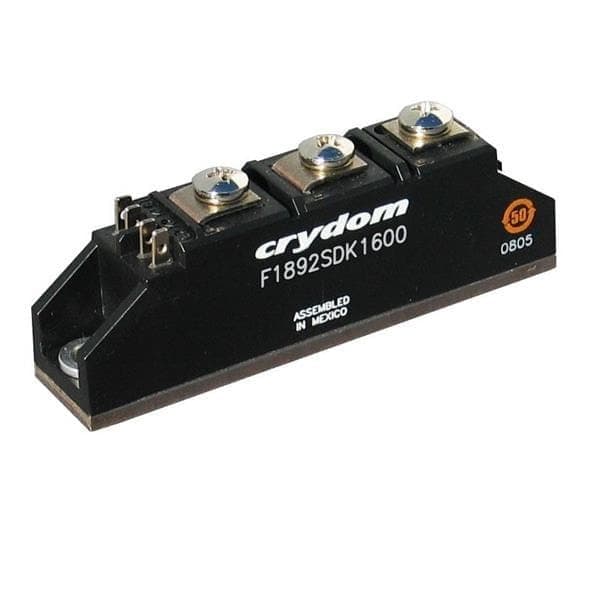

Product Images
