AC output solid-state relay featuring a 90A maximum load current and 660V maximum output voltage. Operates with a 140V AC control voltage and 15mA input current. Offers 4kV isolation voltage and a wide operating temperature range from -40°C to 80°C. Panel or chassis mountable with screw termination, this SPST relay is RoHS compliant and lead-free.
MountingPanel, Chassis Mount, Screw
Quick Jump:
Technical Specifications
Crydom H12CA4890 technical specifications.
General
Control Voltage
140V
Height
19.8mm
Input Current
15mA
Input Type
AC
Isolation Voltage
4kV
Isolation Voltage-Max
4kV
Lead Free
Lead Free
Length
58.4mm
Load Current
90A
Max Operating Temperature
80°C
Min Operating Temperature
-40°C
Max Output Current
90A
Max Output Voltage
660V
Mount
Panel, Chassis Mount, Screw
Output Current
90A
Output Voltage
660V
Package Quantity
1
Packaging
Bulk
Radiation Hardening
No
Relay Type
Relay
RoHS Compliant
Yes
Series
H12C
Termination
Screw
Throw Configuration
SPST
Width
45.7mm
Compliance
RoHS
Compliant
Datasheet
Crydom H12CA4890 Datasheet
Download the complete datasheet for Crydom H12CA4890 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

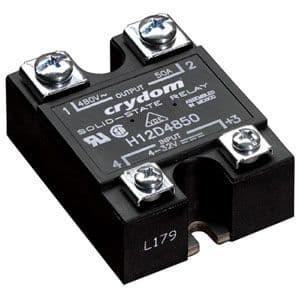

Product Images
