This solid state relay is designed for high current and voltage applications, with a maximum output current of 40A and a maximum output voltage of 530V. It has a DC input type and is screw mountable. The relay operates within a temperature range of -40°C to 80°C. It is compliant with RoHS regulations and is available in a 10-pack quantity.
MountingScrew
Quick Jump:
Technical Specifications
Crydom H12D4840D-10 technical specifications.
General
| Height | 21.6mm |
| Input Current | 13mA |
| Input Type | DC |
| Isolation Voltage | 4kV |
| Lead Free | Lead Free |
| Length | 58.4mm |
| Max Operating Temperature | 80°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 40A |
| Max Output Voltage | 530V |
| Mount | Screw |
| Output Current | 40A |
| Package Quantity | 10 |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | Dual Series |
| Termination | Screw |
| Throw Configuration | SPST |
| Width | 45.7mm |
Compliance
| RoHS | Compliant |
Datasheet
Crydom H12D4840D-10 Datasheet
Download the complete datasheet for Crydom H12D4840D-10 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

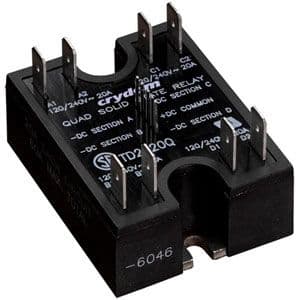

Product Images
