This 125A solid state relay from Crydom features a maximum output voltage of 660V and is designed for panel or chassis mount applications. The relay is compliant with RoHS regulations and is packaged in a 4-pin plastic package. The operating temperature range is not specified in the provided data.
Current Rating125A
MountingPanel, Chassis Mount, Screw
Quick Jump:
Technical Specifications
Crydom H12WD48125-10 technical specifications.
General
| Current Rating | 125A |
| Input Type | DC |
| Lead Free | Lead Free |
| Load Current | 125A |
| Max Output Current | 125A |
| Max Output Voltage | 660V |
| Max Supply Voltage (AC) | 660V |
| Min Supply Voltage (AC) | 48V |
| Max Voltage Rating (AC) | 660V |
| Mount | Panel, Chassis Mount, Screw |
| Package Quantity | 20 |
| Packaging | Bulk |
| Reach SVHC Compliant | Unknown |
| Relay Type | Relay |
| RoHS Compliant | Yes |
| Series | H12WD |
| Termination | Screw |
| Throw Configuration | SPST |
Compliance
| RoHS | Compliant |
Datasheet
Crydom H12WD48125-10 Datasheet
Download the complete datasheet for Crydom H12WD48125-10 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

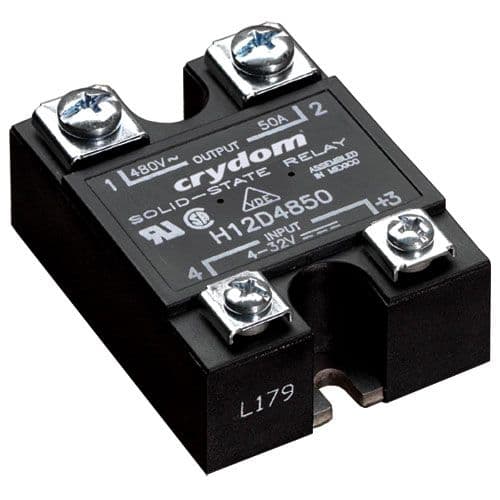

Product Images
