This solid state relay is a DC input device with a maximum operating temperature of 80°C and a minimum operating temperature of -40°C. It has a maximum output voltage of 660V and a maximum output current of 50A. The relay is available in a RoHS compliant, plastic package with a screw termination. It is a single pole, single throw (SPST) device and is panel mountable.
MountingPanel, Chassis Mount, Screw
Quick Jump:
Technical Specifications
Crydom H12WD4850-10 technical specifications.
General
| Depth | 19.8mm |
| Height | 58.4mm |
| Input Type | DC |
| Lead Free | Lead Free |
| Length | 45.7mm |
| Load Current | 50A |
| Max Operating Temperature | 80°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 50A |
| Max Output Voltage | 660V |
| Mount | Panel, Chassis Mount, Screw |
| Output Current | 50A |
| Package Quantity | 20 |
| Packaging | Bulk |
| Reach SVHC Compliant | No |
| Relay Type | Relay |
| RoHS Compliant | Yes |
| Series | H12WD |
| Termination | Screw |
| Throw Configuration | SPST |
Compliance
| RoHS | Compliant |
Datasheet
Crydom H12WD4850-10 Datasheet
Download the complete datasheet for Crydom H12WD4850-10 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

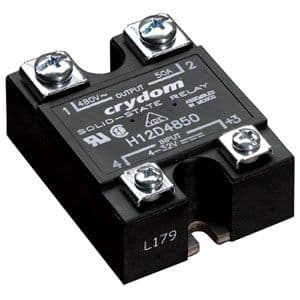

Product Images
