Technical Specifications
Crydom HA4812 technical specifications.
General
| Approvals | UL, CSA, VDE, CE |
| Current Rating | 12A |
| Depth | 45.7mm |
| Height | 23mm |
| Input Current | 10mA |
| Input Type | AC |
| Lead Free | Lead Free |
| Length | 58.4mm |
| Max Operating Temperature | 80°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 12A |
| Max Output Voltage | 530V |
| Mount | Panel, Screw |
| Packaging | Bulk |
| RoHS Compliant | Yes |
| Series | HA / HD Series |
| Termination | Screw |
| Throw Configuration | SPST |
| Voltage Rating (AC) | 530V |
| Width | 22.9mm |
Compliance
| RoHS | Compliant |
Datasheet
Crydom HA4812 Datasheet
Download the complete datasheet for Crydom HA4812 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

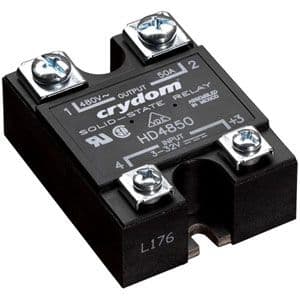

Product Images
