Technical Specifications
Crydom MCBC2450AF technical specifications.
General
| Depth | 45.7mm |
| Height | 19.8mm |
| Input Type | DC |
| Isolation Voltage | 4kV |
| Length | 58.4mm |
| Load Current | 50A |
| Max Input Current | 30mA |
| Max Operating Temperature | 80°C |
| Min Operating Temperature | -20°C |
| Mount | Panel, Chassis Mount, Screw |
| Package Quantity | 10 |
| Packaging | Bulk |
| Reach SVHC Compliant | No |
| Relay Type | Relay |
| RoHS Compliant | Yes |
| Series | MCBC |
| Termination | Screw |
| Throw Configuration | SPST |
Compliance
| RoHS | Compliant |
Datasheet
Crydom MCBC2450AF Datasheet
Download the complete datasheet for Crydom MCBC2450AF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

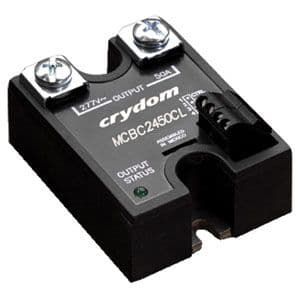

Product Images
