24MHz fundamental quartz crystal, surface mount (SMD/SMT) package. Features 30ppm frequency tolerance and stability, 18pF load capacitance, and 40R ESR. Operates within a -20°C to 70°C temperature range with gold contact plating. Supplied in tape and reel packaging, RoHS compliant.
Frequency24MHz
PackageSMD/SMT
MountingSurface Mount
Quick Jump:
Technical Specifications
CTS 445C33D24M00000 technical specifications.
General
| Package/Case | SMD/SMT |
| Contact Plating | Gold |
| ESR (Equivalent Series Resistance) | 40R |
| Frequency | 24MHz |
| Frequency Stability | 30ppm |
| Frequency Tolerance | 30ppm |
| Height | 0.053inch |
| Length | 0.197inch |
| Load Capacitance | 18pF |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -20°C |
| Mount | Surface Mount |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| RoHS Compliant | Yes |
| Series | 445 |
| Series Resistance | 40R |
| Termination | SMD/SMT |
| Tolerance | 30ppm |
| Width | 0.126inch |
Compliance
| RoHS | Compliant |
Datasheet
CTS 445C33D24M00000 Datasheet
Download the complete datasheet for CTS 445C33D24M00000 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

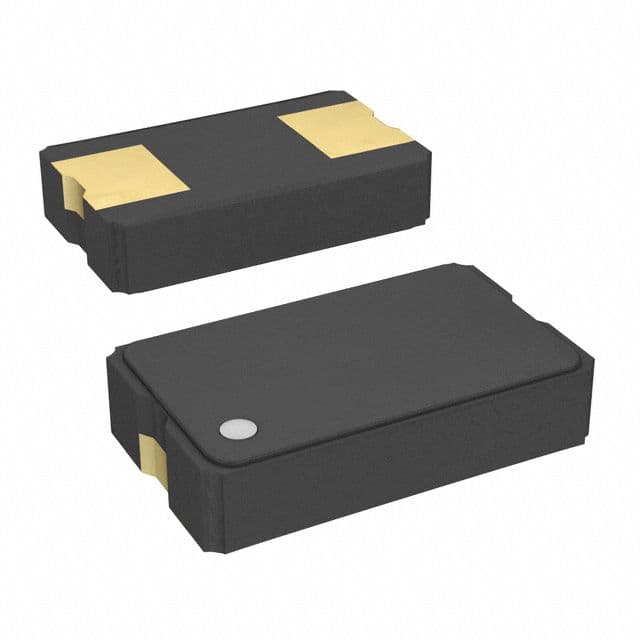

Product Images
