Forged aluminum heat sink, black anodized finish, designed for BGA packages. Features a square, finned shape with 19mm length and 19mm width, standing 6.3mm high. Mounts via adhesive tape for ASIC cooling applications. Offers a thermal resistance of 7.1°C/W at 100 LFM forced air flow. Lead-free construction.
PackageBGA
MountingAdhesive
Quick Jump:
Technical Specifications
CTS APF19-19-06CB/A01 technical specifications.
General
| Package/Case | BGA |
| Color | Black |
| Finish | Anodized |
| Height | 6.3mm |
| Lead Free | Lead Free |
| Length | 19mm |
| Material | Aluminium |
| Mount | Adhesive |
| Package Cooled | ASIC |
| Package Quantity | 100 |
| Series | APF |
| Shape | Square, Fins |
| Thermal Resistance @ Forced Air Flow (100 LFM) | 7.1°C/W |
| Width | 19mm |
Compliance
| RoHS | Compliant |
Datasheet
CTS APF19-19-06CB/A01 Datasheet
Download the complete datasheet for CTS APF19-19-06CB/A01 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

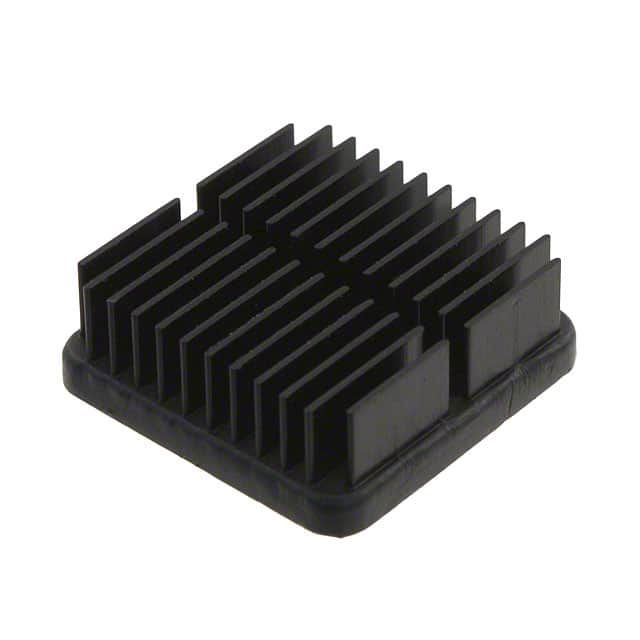

Product Images
