Board mount DC/DC converter with 2W output power, delivering 24Vdc at 83mA. Features a wide input voltage range of 21.6-26.4Vdc, 85% efficiency, and 1.5kV isolation. Operates across a -40°C to 105°C temperature range and includes short-circuit protection. Packaged in a SIP for through-hole mounting.
PackageSIP
MountingThrough Hole
Power2W
Quick Jump:
Technical Specifications
CUI PDM2-S24-S24-S technical specifications.
General
Package/Case
SIP
Current - Output 1
83mA
Efficiency
85%
Features
SCP
Height
0.39inch
Isolation
Isolated
Isolation Voltage
1.5kV
Lead Free
Lead Free
Length
0.77inch
Max Input Voltage
26.4V
Min Input Voltage
21.6V
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Max Output Current
83mA
Max Power Dissipation
2W
Mount
Through Hole
Number of Outputs
1
Output Power
2W
Output Voltage
24V
Package Quantity
25
Packaging
Rail/Tube
RoHS Compliant
Yes
Series
PDM2-S
Voltage - Output 1
24V
Weight
0.084658oz
Width
0.28inch
Compliance
RoHS
Compliant
Datasheet
CUI PDM2-S24-S24-S Datasheet
Download the complete datasheet for CUI PDM2-S24-S24-S to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

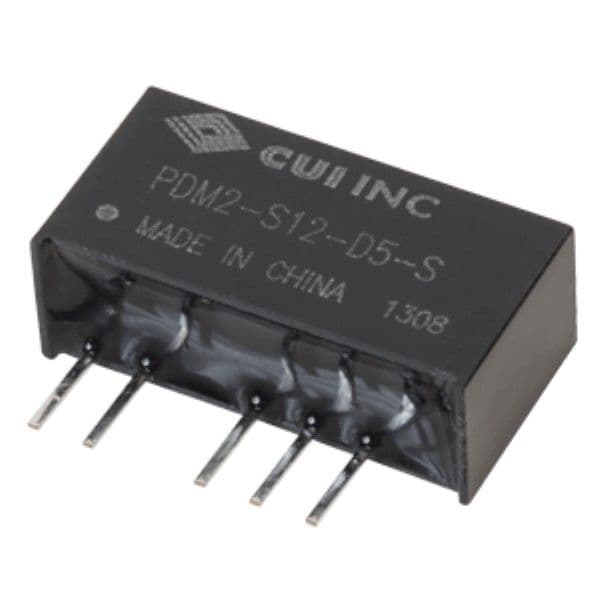

Product Images
