PackageSMD/SMT
MountingSurface Mount
Power1W
Quick Jump:
Technical Specifications
CUI PDS1-S12-S5-M technical specifications.
General
Package/Case
SMD/SMT
Efficiency
80%
Features
SCP
Height
0.28inch
Isolation
Isolated
Isolation Voltage
1.5kV
Lead Free
Lead Free
Length
0.5inch
Max Input Voltage
13.2V
Min Input Voltage
10.8V
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Max Output Current
200mA
Max Power Dissipation
1W
Mount
Surface Mount
Number of Outputs
1
Output Power
1W
Output Voltage
5V
Packaging
Rail/Tube
RoHS Compliant
Yes
Series
PDS1-M (1W)
Voltage - Output 1
5V
Width
0.33inch
Compliance
RoHS
Compliant
Datasheet
CUI PDS1-S12-S5-M Datasheet
Download the complete datasheet for CUI PDS1-S12-S5-M to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

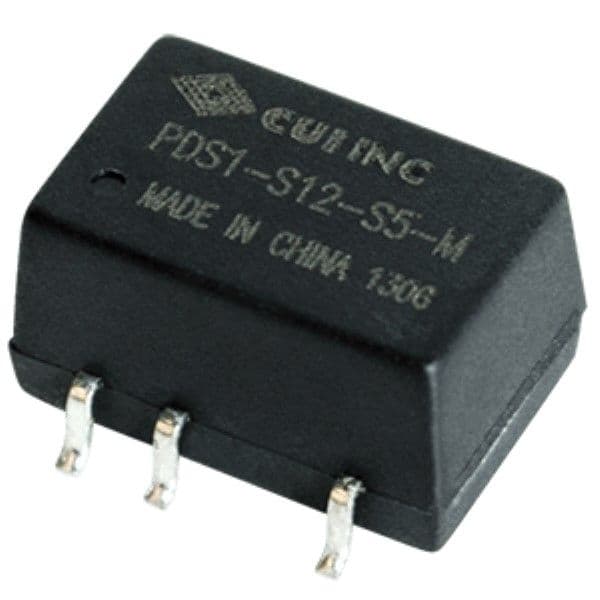

Product Images
