3W isolated DC/DC converter with dual 12V/-12V outputs at 125mA each. Features an 18-36Vdc input range, 80% efficiency, and overcurrent/short-circuit protection. Packaged in a SIP for through-hole mounting, this component operates from -40°C to 105°C and offers 1.5kV isolation.
PackageSIP
MountingThrough Hole
Power3W
Quick Jump:
Technical Specifications
CUI PQMC3-D24-D12-S technical specifications.
General
Package/Case
SIP
Current - Output 1
125mA
Current - Output 2
125mA
Efficiency
80%
Features
OCP, SCP
Height
0.47inch
Isolation
Isolated
Isolation Voltage
1.5kV
Lead Free
Lead Free
Length
0.87inch
Max Input Voltage
36V
Min Input Voltage
18V
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Max Output Current
125mA
Max Power Dissipation
3W
Mount
Through Hole
Number of Outputs
2
Output Power
3W
Output Voltage
12V
Package Quantity
22
Packaging
Rail/Tube
RoHS Compliant
Yes
Series
PQMC3-S
Voltage - Output 1
12V
Voltage - Output 2
-12V
Weight
0.172842oz
Width
0.37inch
Compliance
RoHS
Compliant
Datasheet
CUI PQMC3-D24-D12-S Datasheet
Download the complete datasheet for CUI PQMC3-D24-D12-S to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

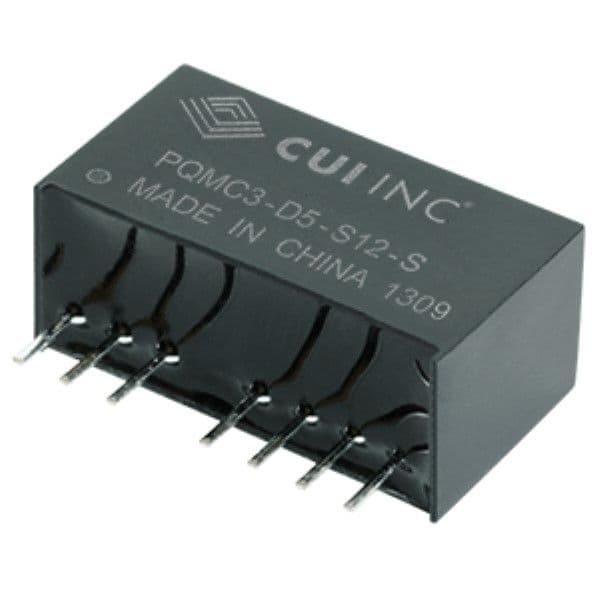

Product Images
