3W isolated DC/DC converter featuring dual 15V and -15V outputs, each with 100mA current capability. Input voltage range spans 18-36 Vdc, with a maximum output power of 1W. This board mount SIP package offers 1.5kV isolation voltage and operates efficiently at 81%, with overcurrent and short-circuit protection. Designed for through-hole mounting, it boasts a wide operating temperature range from -40°C to 105°C and is lead-free and RoHS compliant.
PackageSIP
MountingThrough Hole
Power1W
Quick Jump:
Technical Specifications
CUI PQMC3-D24-D15-S technical specifications.
General
Package/Case
SIP
Current - Output 1
100mA
Current - Output 2
100mA
Efficiency
81%
Features
OCP, SCP
Height
0.47inch
Isolation
Isolated
Isolation Voltage
1.5kV
Lead Free
Lead Free
Length
0.87inch
Max Input Voltage
36V
Min Input Voltage
18V
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Max Output Current
100mA
Max Power Dissipation
3W
Mount
Through Hole
Number of Outputs
2
Output Power
1W
Output Voltage
15V
Package Quantity
22
Packaging
Rail/Tube
RoHS Compliant
Yes
Series
PQMC3-S
Voltage - Output 1
15V
Voltage - Output 2
-15V
Weight
0.172842oz
Width
0.37inch
Compliance
RoHS
Compliant
Datasheet
CUI PQMC3-D24-D15-S Datasheet
Download the complete datasheet for CUI PQMC3-D24-D15-S to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

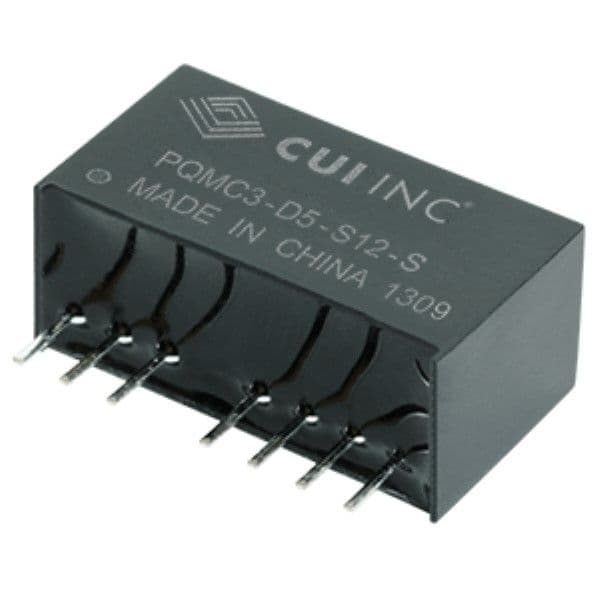

Product Images
