Technical Specifications
CUI VBSD1-S24-S3.3-DIP technical specifications.
General
Efficiency
76%
Features
SCP
Height
0.3inch
Isolation
Isolated
Isolation Voltage
1kV
Length
0.5inch
Max Input Voltage
26.4V
Min Input Voltage
21.6V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
300mA
Max Power Dissipation
1W
Mount
Through Hole
Number of Outputs
1
Output Power
1W
Output Voltage
3.3V
RoHS Compliant
Yes
Series
VBSD1-DIP
Voltage - Output 1
3.3V
Width
0.39inch
Compliance
RoHS
Compliant
Datasheet
CUI VBSD1-S24-S3.3-DIP Datasheet
Download the complete datasheet for CUI VBSD1-S24-S3.3-DIP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

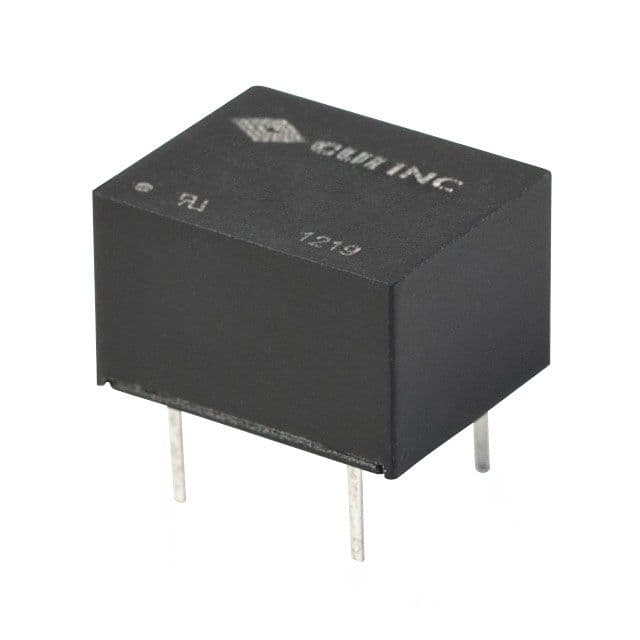

Product Images
