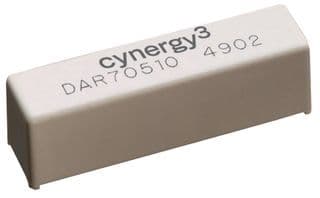

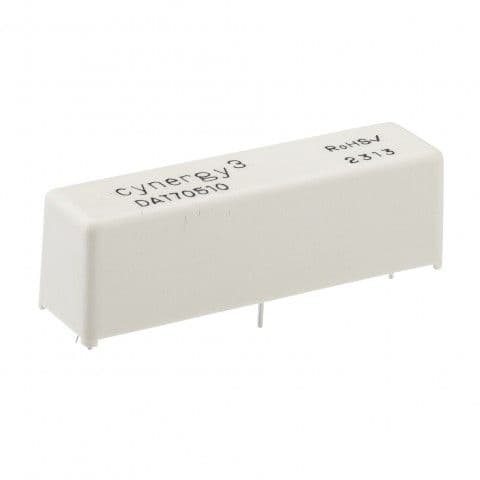

SPST-NO reed relay with a 10kV switching voltage and 2A contact current rating. Features tungsten contacts, a 24V DC non-latching coil with 68.6mA coil current and 350 Ohm resistance. Through-hole PCB mount termination with PC pins. Operates within a -20°C to 70°C temperature range, offering a 3ms operate time and 2ms release time, with a 100 million cycle life.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Cynergy3 DAT72415 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Coil Current | 68.6mA |
| Coil Resistance | 350R |
| Coil Type | Non-Latching |
| Coil Voltage (DC) | 24V |
| Contact Current Rating | 2A |
| Contact Material | Tungsten |
| Depth | 15.8mm |
| Height | 18.5mm |
| Length | 60mm |
| Life (Hours) | 100000000Hour |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -20°C |
| Mount | Through Hole, PCB |
| Operate Time | 3ms |
| Packaging | Tray |
| Reach SVHC Compliant | No |
| Relay Type | Reed |
| Release Time | 2ms |
| RoHS Compliant | Yes |
| Series | DA |
| Switching Capacity | 50W |
| Switching Current | 2A |
| Switching Voltage | 10kV |
| Termination | PC Pin |
| Throw Configuration | SPST |
| Weight | 23g |
| Width | 15.8mm |
| RoHS | Compliant |
