Cypress
CY2309NZSC-1H
Low Skew Clock Driver, 2309 Series, 9 True Output(s), 0 Inverted Output(s), CMOS, PDSO16, 0.150 INCH, MS-012, SOIC-16
Frequency133.3MHz
PackageSOIC
MountingSurface Mount
Quick Jump:
Technical Specifications
Cypress CY2309NZSC-1H technical specifications.
General
Package/Case
SOIC
Duty Cycle
60%
Input
Clock
Max Duty Cycle
60%
Max Frequency
133.3MHz
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Max Supply Voltage
3.6V
Min Supply Voltage
3V
Mount
Surface Mount
Number of Circuits
1
Number of Outputs
9
Operating Supply Voltage
3.3V
Packaging
Rail/Tube
Propagation Delay
9.2ns
Quiescent Current
32mA
Radiation Hardening
No
RoHS Compliant
No
Turn-On Delay Time
9.2ns
Compliance
RoHS
Not CompliantNo
Datasheet
Cypress CY2309NZSC-1H Datasheet
Download the complete datasheet for Cypress CY2309NZSC-1H to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

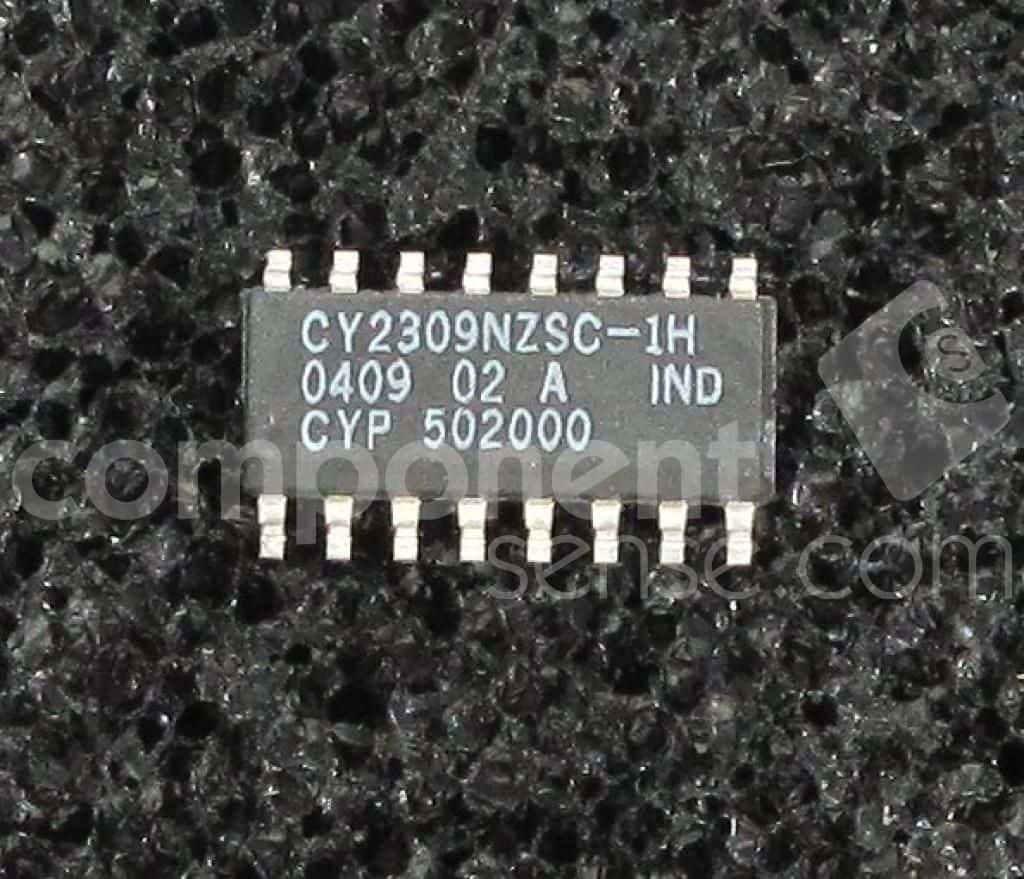

Product Images
