Cypress
CY24272ZXC

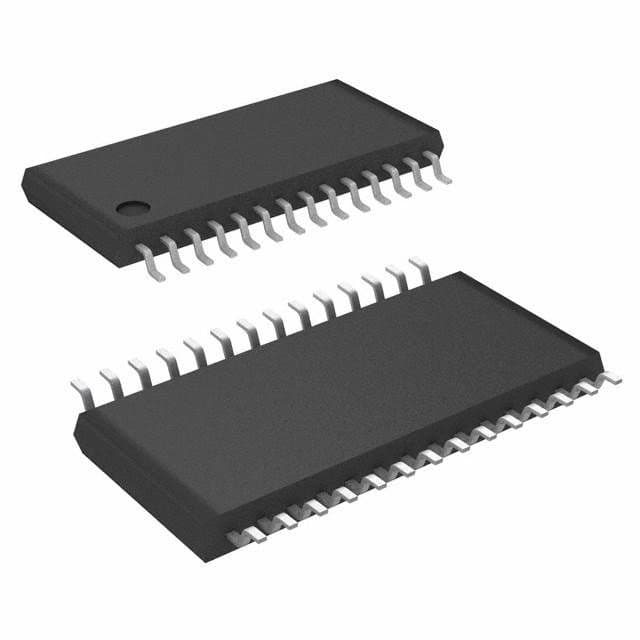

PLL Based Clock Driver, 24272 Series, 4 True Output(s), 0 Inverted Output(s), PDSO28, 4.40 MM, LEAD FREE, MO-153, TSSOP-28
Frequency667MHz
PackageTSSOP
Current125mA
Quick Jump:
Technical Specifications
Cypress CY24272ZXC technical specifications.
General
Package/Case
TSSOP
Contact Plating
Tin, Gold, Matte
Input
Clock
Lead Free
Lead Free
Max Duty Cycle
60%
Max Frequency
667MHz
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Max Supply Voltage
2.625V
Min Supply Voltage
2.375V
Number of Circuits
1
Number of Elements
1
Number of Outputs
4
Operating Supply Current
85mA
Operating Supply Voltage
2.5V
Package Quantity
50
Packaging
Rail/Tube
PLL
Yes
Radiation Hardening
No
RoHS Compliant
Yes
Series
Spread Aware™
Supply Current
125mA
Supply Voltage-Nom
2.5V
Compliance
RoHS
Compliant
Datasheet
Cypress CY24272ZXC Datasheet
Download the complete datasheet for Cypress CY24272ZXC to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
