Cypress
CY29942AI
Low Skew Clock Driver, 29942 Series, 18 True Output(s), 0 Inverted Output(s), PQFP32, 7 X 7 MM, 1.40 MM HEIGHT, PLASTIC, LQFP-32
Frequency200MHz
PackageTQFP
Quick Jump:
Technical Specifications
Cypress CY29942AI technical specifications.
General
Package/Case
TQFP
Duty Cycle
55%
Input
LVTTL
Max Duty Cycle
55%
Max Frequency
200MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
3.465V
Min Supply Voltage
2.375V
Number of Circuits
1
Number of Outputs
18
Packaging
Rail/Tube
Propagation Delay
3.8ns
Quiescent Current
7mA
RoHS Compliant
No
Turn-On Delay Time
4.4ns
Compliance
RoHS
Not Compliant
Datasheet
Cypress CY29942AI Datasheet
Download the complete datasheet for Cypress CY29942AI to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

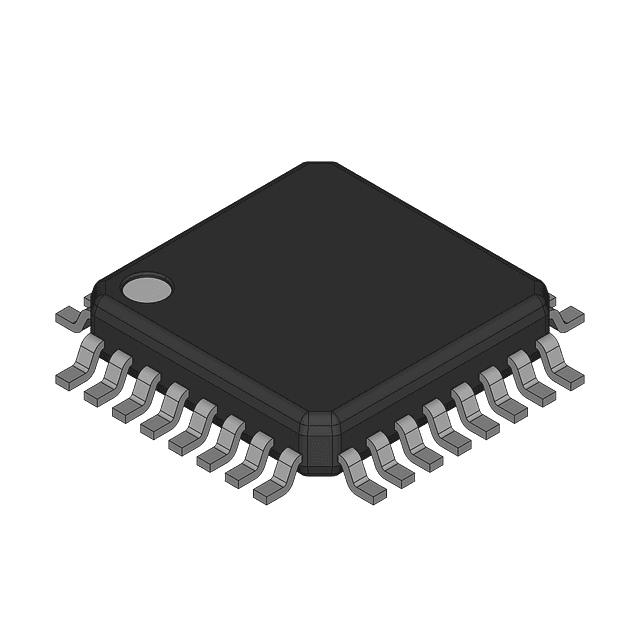

Product Images
