Asynchronous SRAM chip, 8Mb density, 512K x 16 configuration, offering 45ns access time. Features a 3V operating supply voltage with a range of 2.2V to 3.6V. This surface mount component utilizes a VFBGA package and supports a parallel interface. Industrial temperature grade, lead-free, and RoHS compliant.
Frequency45GHz
PackageVFBGA
Current25mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Cypress CY62157EV30LL-45BVXIT technical specifications.
General
Access Time
45ns
Access Time-Max
45ns
Address Bus Width
19b
Package/Case
VFBGA
Density
8Mb
Frequency
45GHz
Interface
Parallel
Lead Free
Lead Free
Max Operating Temperature
85°C
Max Supply Voltage
3.6V
Memory Size
8Mb
Memory Type
Volatile, , SRAM, SDR, RAM, SRAM - Asynchronous
Min Operating Temperature
-40°C
Min Supply Voltage
2.2V
Mount
Surface Mount
Number of Ports
1
Number of Words
512000
Operating Supply Voltage
3V
Package Quantity
2000
Packaging
Tape and Reel
Radiation Hardening
No
RoHS Compliant
Yes
Series
MoBL®
Supply Current
25mA
Supply Voltage-Nom
3.6V
Sync/Async
Asynchronous
Temperature Grade
INDUSTRIAL
Word Size
16b
Compliance
RoHS
Compliant
Datasheet
Cypress CY62157EV30LL-45BVXIT Datasheet
Download the complete datasheet for Cypress CY62157EV30LL-45BVXIT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

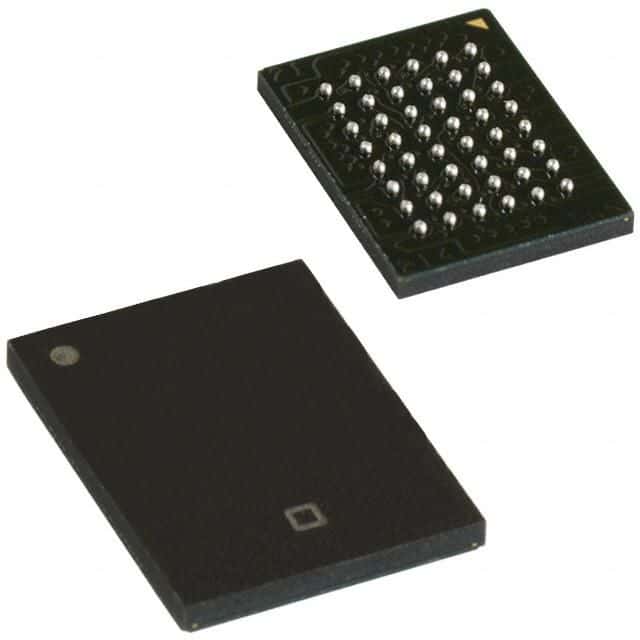

Product Images
