8Mb asynchronous SRAM, 512K x 16 configuration, featuring a 45ns access time. This CMOS memory component operates with a parallel interface, supporting a supply voltage range of 2.2V to 3.6V. Packaged in a TSOP-48 surface mount case, it is designed for industrial temperature ranges from -40°C to 85°C. RoHS compliant and lead-free.
Frequency45GHz
PackageTSOP
Current25mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Cypress CY62157EV30LL-45ZXIT technical specifications.
General
Access Time
45ns
Access Time-Max
45ns
Address Bus Width
19b
Package/Case
TSOP
Density
8Mb
Frequency
45GHz
Interface
Parallel
Lead Free
Lead Free
Max Operating Temperature
85°C
Max Supply Voltage
3.6V
Memory Size
8Mb
Memory Type
SDR, , RAM, SRAM - Asynchronous
Min Operating Temperature
-40°C
Min Supply Voltage
2.2V
Mount
Surface Mount
Number of Ports
1
Number of Words
512000
Package Quantity
1000
Packaging
Tape and Reel
Radiation Hardening
No
RoHS Compliant
Yes
Series
MoBL®
Supply Current
25mA
Supply Voltage-Nom
3V
Sync/Async
Asynchronous
Temperature Grade
INDUSTRIAL
Word Size
16b
Compliance
RoHS
Compliant
Datasheet
Cypress CY62157EV30LL-45ZXIT Datasheet
Download the complete datasheet for Cypress CY62157EV30LL-45ZXIT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

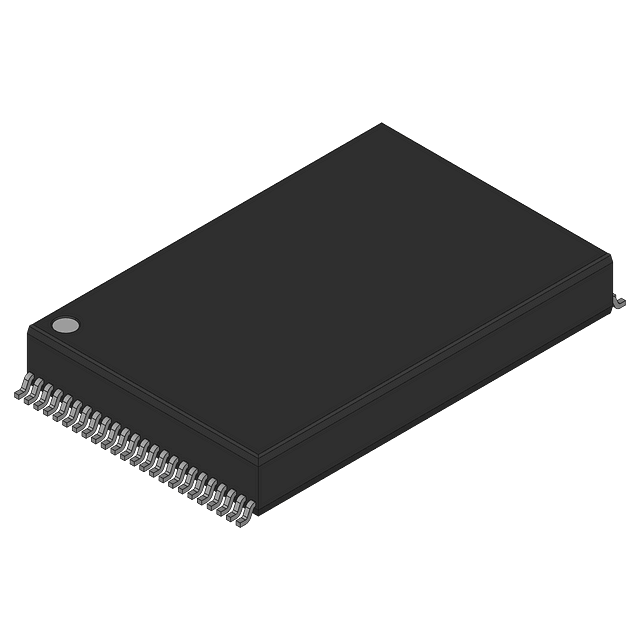

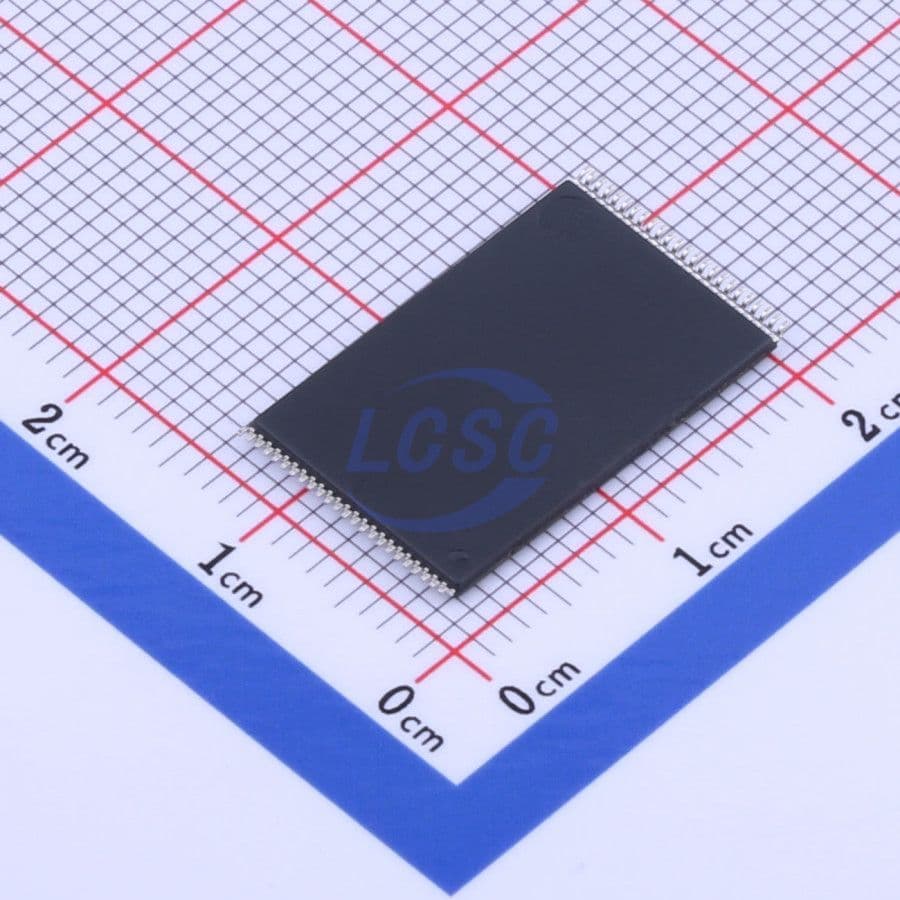

Product Images
