Cypress
CY7B991V-5JXCT
PLL Based Clock Driver, 7B Series, 4 True Output(s), 0 Inverted Output(s), PQCC32, LCC-32
Frequency80MHz
PackagePLCC
Current95mA
Power104mW
Quick Jump:
Technical Specifications
Cypress CY7B991V-5JXCT technical specifications.
General
Package/Case
PLCC
Contact Plating
Tin, Matte
Duty Cycle
50%
Input
3-State
Lead Free
Lead Free
Max Frequency
80MHz
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Max Supply Voltage
3.6V
Min Supply Voltage
3V
Number of Circuits
1
Number of Elements
1
Number of Outputs
8
Operating Supply Voltage
3.3V
Package Quantity
750
Packaging
Tape and Reel
Power Dissipation
104mW
Radiation Hardening
No
RoHS Compliant
Yes
Series
RoboClock™
Supply Current
95mA
Supply Voltage-Nom
3.3V
Compliance
RoHS
Compliant
Datasheet
Cypress CY7B991V-5JXCT Datasheet
Download the complete datasheet for Cypress CY7B991V-5JXCT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

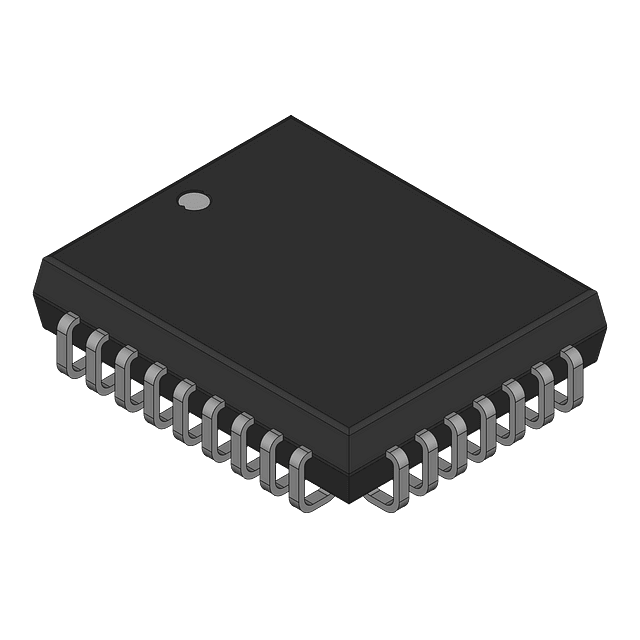

Product Images
