1.152Mb Dual-Port SRAM, 32K x 36 configuration, featuring a 12ns access time. This CMOS integrated circuit operates asynchronously with a parallel interface and a 30-bit address bus. Packaged in a lead-free, surface-mount TQFP with 144 pins, it supports a 3.3V operating supply voltage.
Frequency12GHz
PackageTQFP
Current385mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Cypress CY7C057V-12AXC technical specifications.
General
Access Time
12ns
Access Time-Max
12ns
Address Bus Width
30b
Package/Case
TQFP
Density
1.125Mb
Frequency
12GHz
Interface
Parallel
Lead Free
Lead Free
Max Operating Temperature
70°C
Max Supply Voltage
3.465V
Memory Size
1.152Mb
Memory Type
SDR, , Volatile, SRAM
Min Operating Temperature
0°C
Min Supply Voltage
3.135V
Mount
Surface Mount
Number of Ports
2
Number of Words
32000
Operating Supply Voltage
3.3V
Package Quantity
60
Packaging
Tray
Radiation Hardening
No
RoHS Compliant
Yes
Supply Current
385mA
Supply Voltage-Nom
3.3V
Sync/Async
Asynchronous
Word Size
36b
Compliance
RoHS
Compliant
Datasheet
Cypress CY7C057V-12AXC Datasheet
Download the complete datasheet for Cypress CY7C057V-12AXC to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

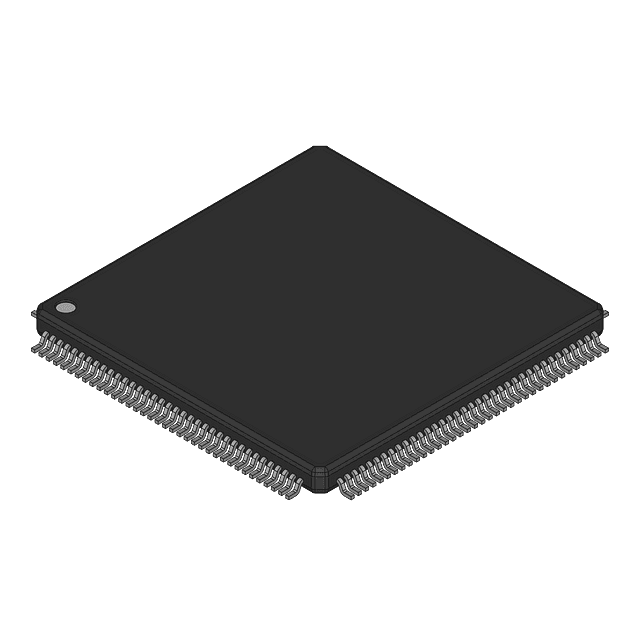

Product Images
