High-speed asynchronous SRAM with 512Kb density, organized as 32K words by 16 bits. Features a 10ns access time and operates at a maximum frequency of 100MHz. This surface mount component utilizes a parallel interface and is housed in a TSOP package. It supports a 3.3V operating supply voltage and is RoHS compliant.
Frequency100MHz
PackageTSOP
Current60mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Cypress CY7C1020DV33-10ZSXI technical specifications.
General
| Access Time | 10ns |
| Access Time-Max | 10ns |
| Address Bus Width | 15b |
| Package/Case | TSOP |
| Density | 512Kb |
| Interface | Parallel |
| Lead Free | Lead Free |
| Max Frequency | 100MHz |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 3.6V |
| Memory Size | 512Kb |
| Memory Type | RAM, , SRAM - Asynchronous, SDR |
| Min Supply Voltage | 3V |
| Mount | Surface Mount |
| Number of Ports | 1 |
| Number of Words | 32000 |
| Operating Supply Voltage | 3.3V |
| Package Quantity | 135 |
| Packaging | Tray |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Supply Current | 60mA |
| Supply Voltage-Nom | 3.6V |
| Sync/Async | Asynchronous |
| Word Size | 16b |
Compliance
| RoHS | Compliant |
Datasheet
Cypress CY7C1020DV33-10ZSXI Datasheet
Download the complete datasheet for Cypress CY7C1020DV33-10ZSXI to view detailed technical specifications.
No datasheet is available for this part.

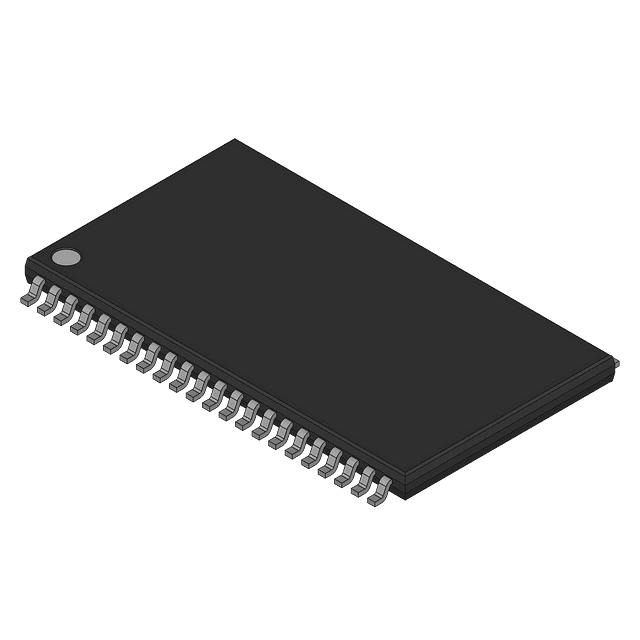

Product Images
