1Mb asynchronous SRAM chip, organized as 64K x 16 bits, offering a fast 10ns access time. This surface-mount component operates with a 5V supply voltage, featuring a 16-bit parallel interface. Designed for industrial temperature ranges (-40°C to 85°C), it is packaged in a 44-pin TSOP-II.
Frequency100MHz
PackageTSOP
Current80mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Cypress CY7C1021D-10ZSXI technical specifications.
General
Access Time
10ns
Access Time-Max
10ns
Address Bus Width
16b
Package/Case
TSOP
Density
1Mb
Interface
Parallel
Lead Free
Lead Free
Max Frequency
100MHz
Max Operating Temperature
85°C
Max Supply Voltage
5.5V
Memory Size
1Mb
Memory Type
Volatile, , SRAM, SDR
Min Operating Temperature
-40°C
Min Supply Voltage
4.5V
Mount
Surface Mount
Number of Ports
1
Number of Words
64000
Operating Supply Voltage
5V
Package Quantity
135
Packaging
Tray
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Supply Current
80mA
Supply Voltage-Nom
5V
Sync/Async
Asynchronous
Temperature Grade
INDUSTRIAL
Word Size
16b
Compliance
RoHS
Compliant
Datasheet
Cypress CY7C1021D-10ZSXI Datasheet
Download the complete datasheet for Cypress CY7C1021D-10ZSXI to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

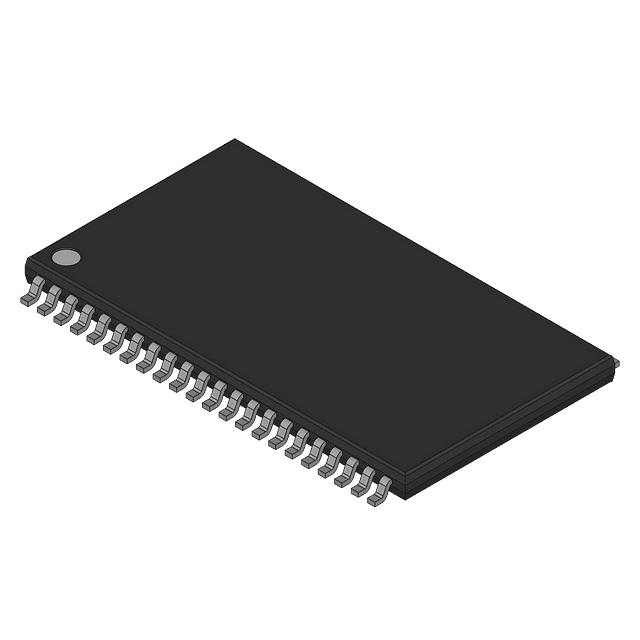

Product Images
