1Mb asynchronous SRAM, 64K x 16 configuration, featuring a 10ns access time and 100MHz maximum frequency. This CMOS component operates with a 5V supply voltage and is housed in a TSOP-II 44-pin surface mount package. Designed for industrial temperature ranges (-40°C to 85°C), it offers parallel interface and is RoHS compliant.
Frequency100MHz
PackageTSOP
Current80mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Cypress CY7C1021D-10ZSXIT technical specifications.
General
Access Time
10ns
Access Time-Max
10ns
Address Bus Width
16b
Package/Case
TSOP
Density
1Mb
Interface
Parallel
Lead Free
Lead Free
Max Frequency
100MHz
Max Operating Temperature
85°C
Memory Size
1Mb
Memory Type
Volatile, , SRAM, SDR, RAM, SRAM - Asynchronous
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
4.5V
Mount
Surface Mount
Number of Ports
1
Number of Words
64000
Operating Supply Voltage
5V
Package Quantity
1000
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Supply Current
80mA
Supply Voltage-Nom
5V
Sync/Async
Asynchronous
Temperature Grade
INDUSTRIAL
Word Size
16b
Compliance
RoHS
Compliant
Datasheet
Cypress CY7C1021D-10ZSXIT Datasheet
Download the complete datasheet for Cypress CY7C1021D-10ZSXIT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

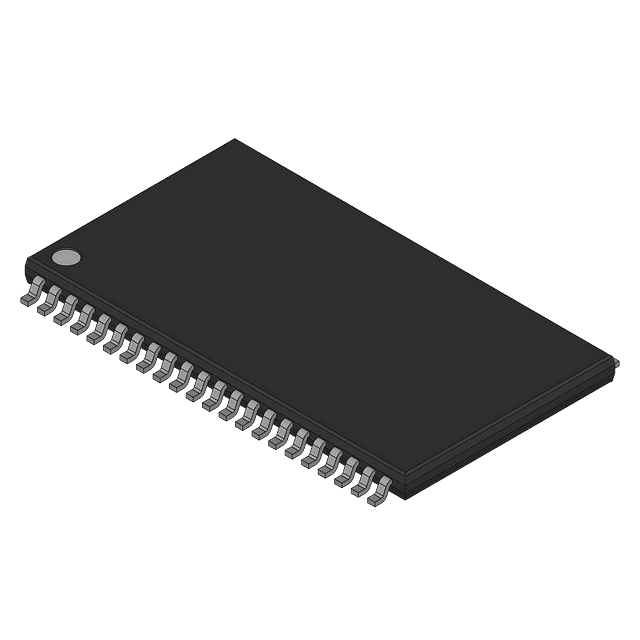

Product Images
