Cypress
CY7C1041CV33-10BAXE
Standard SRAM, 256KX16, 10ns, CMOS, 7 X 8.50 MM, 1.20 MM HEIGHT, LEAD FREE, FBGA-48
PackageFBGA
Current130mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Cypress CY7C1041CV33-10BAXE technical specifications.
General
Access Time
10ns
Address Bus Width
18b
Package/Case
FBGA
Density
4Mb
Interface
Parallel
Max Operating Temperature
125°C
Max Supply Voltage
3.6V
Memory Size
4Mb
Memory Type
SDR, , Volatile, SRAM
Min Operating Temperature
-40°C
Min Supply Voltage
3V
Mount
Surface Mount
Number of Ports
1
Number of Words
256000
Operating Supply Voltage
3.3V
Package Quantity
260
Packaging
Tray
Radiation Hardening
No
RoHS Compliant
Yes
Supply Current
130mA
Sync/Async
Asynchronous
Word Size
16b
Compliance
RoHS
Compliant
Datasheet
Cypress CY7C1041CV33-10BAXE Datasheet
Download the complete datasheet for Cypress CY7C1041CV33-10BAXE to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

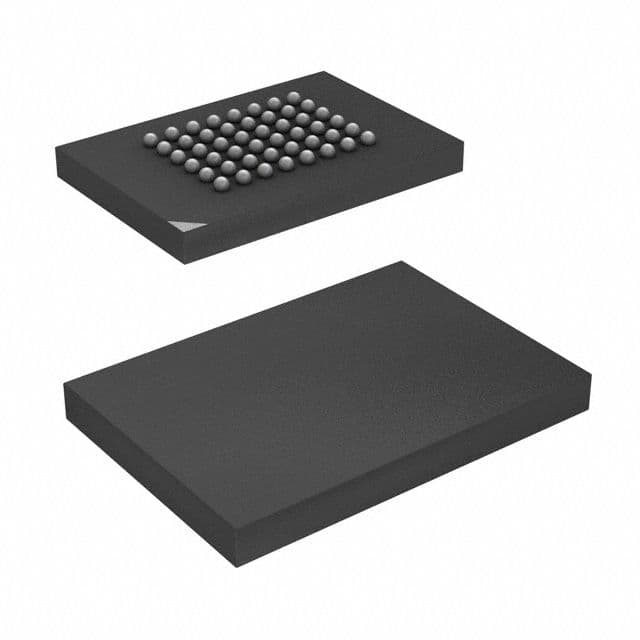

Product Images
