16Mb SRAM, 16-bit word size, 15ns access time, asynchronous interface, and 20-bit address bus width. This CMOS memory operates with a 1.8V supply voltage, featuring a TSOP package for surface mounting. RoHS compliant and lead-free, it offers a wide operating temperature range from -40°C to 85°C.
PackageTSOP
Current150mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Cypress CY7C1061DV18-15ZSXI technical specifications.
General
Access Time
15ns
Access Time-Max
15ns
Address Bus Width
20b
Package/Case
TSOP
Density
16Mb
Interface
Parallel
Lead Free
Lead Free
Max Operating Temperature
85°C
Memory Size
16Mb
Memory Type
Volatile, , SRAM, SDR
Min Operating Temperature
-40°C
Max Supply Voltage
2.2V
Min Supply Voltage
1.7V
Mount
Surface Mount
Number of Ports
1
Operating Supply Voltage
1.8V
Package Quantity
108
Packaging
Tray
Radiation Hardening
No
RoHS Compliant
Yes
Supply Current
150mA
Supply Voltage-Nom
1.8V
Sync/Async
Asynchronous
Word Size
16b
Compliance
RoHS
Compliant
Datasheet
Cypress CY7C1061DV18-15ZSXI Datasheet
Download the complete datasheet for Cypress CY7C1061DV18-15ZSXI to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

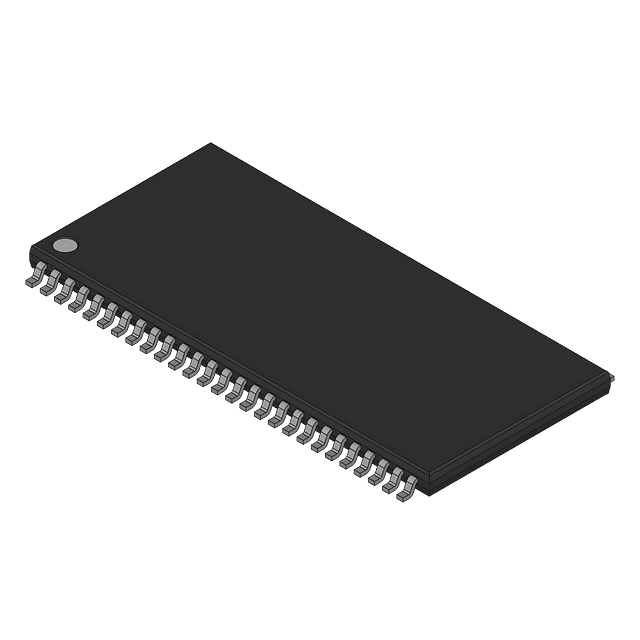

Product Images
