Cypress
CY7C1061DV33-10BVJXI
Standard SRAM, 1MX16, 10ns, CMOS, PBGA48, 8 X 9.50 MM, 1 MM HEIGHT, LEAD FREE, VFBGA-48
PackageVFBGA
Current175mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Cypress CY7C1061DV33-10BVJXI technical specifications.
General
Access Time
10ns
Access Time-Max
10ns
Address Bus Width
20b
Package/Case
VFBGA
Density
16Mb
Interface
Parallel
Lead Free
Lead Free
Max Operating Temperature
85°C
Max Supply Voltage
3.6V
Memory Size
16Mb
Memory Type
Volatile, , SRAM, SDR, RAM, SRAM - Asynchronous
Min Operating Temperature
-40°C
Min Supply Voltage
3V
Mount
Surface Mount
Number of Ports
1
Operating Supply Voltage
3.3V
Package Quantity
210
Packaging
Tray
Radiation Hardening
No
RoHS Compliant
Yes
Supply Current
175mA
Sync/Async
Asynchronous
Word Size
16b
Compliance
RoHS
Compliant
Datasheet
Cypress CY7C1061DV33-10BVJXI Datasheet
Download the complete datasheet for Cypress CY7C1061DV33-10BVJXI to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

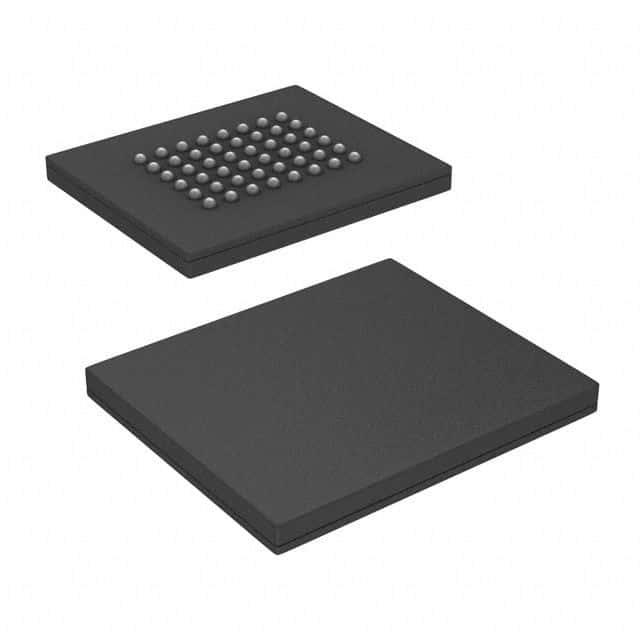

Product Images
