16Mb SRAM, 512K x 32, featuring 10ns access time. This asynchronous, volatile memory component operates with a 3.3V supply voltage and is housed in a 119-pin PBGA package for surface mounting. Designed for industrial temperature ranges (-40°C to 85°C), it offers a parallel interface and a 19-bit address bus.
PackageBGA
Current175mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Cypress CY7C1062DV33-10BGI technical specifications.
General
Access Time
10ns
Access Time-Max
10ns
Address Bus Width
19b
Package/Case
BGA
Density
16Mb
Interface
Parallel
Lead Free
Contains Lead
Max Operating Temperature
85°C
Memory Size
16Mb
Memory Type
Volatile, , SRAM, SDR, RAM, SRAM - Asynchronous
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Min Supply Voltage
3V
Mount
Surface Mount
Number of Ports
1
Number of Words
512000
Operating Supply Voltage
3.3V
Package Quantity
84
Packaging
Tray
Radiation Hardening
No
RoHS Compliant
No
Supply Current
175mA
Supply Voltage-Nom
3.6V
Sync/Async
Asynchronous
Temperature Grade
INDUSTRIAL
Word Size
32b
Compliance
RoHS
Not CompliantNo
Datasheet
Cypress CY7C1062DV33-10BGI Datasheet
Download the complete datasheet for Cypress CY7C1062DV33-10BGI to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

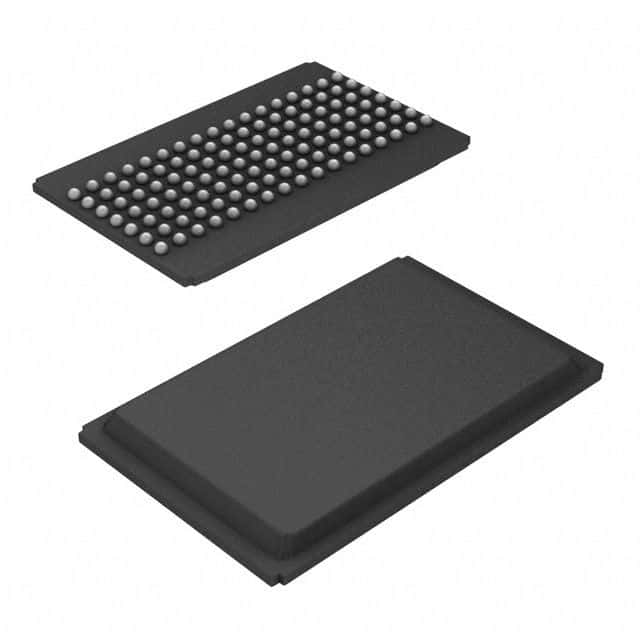

Product Images
