1Mb Asynchronous SRAM, 128K x 8 configuration, featuring a 10ns access time. This CMOS component operates with a 5V supply voltage and supports a parallel interface. Packaged in a 32-lead SOJ surface-mount format, it offers industrial temperature range operation from -40°C to 85°C.
Frequency100MHz
PackageSOJ
Current80mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Cypress CY7C109D-10VXIT technical specifications.
General
Access Time
10ns
Access Time-Max
10ns
Address Bus Width
17b
Package/Case
SOJ
Density
1Mb
Interface
Parallel
Lead Free
Lead Free
Max Frequency
100MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Memory Size
1Mb
Memory Type
SDR, , RAM, SRAM - Asynchronous
Min Supply Voltage
4.5V
Mount
Surface Mount
Number of Ports
1
Number of Words
128000
Operating Supply Voltage
5V
Package Quantity
750
Packaging
Tape and Reel
Radiation Hardening
No
RoHS Compliant
Yes
Supply Current
80mA
Supply Voltage-Nom
5V
Sync/Async
Asynchronous
Temperature Grade
INDUSTRIAL
Word Size
8b
Compliance
RoHS
Compliant
Datasheet
Cypress CY7C109D-10VXIT Datasheet
Download the complete datasheet for Cypress CY7C109D-10VXIT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

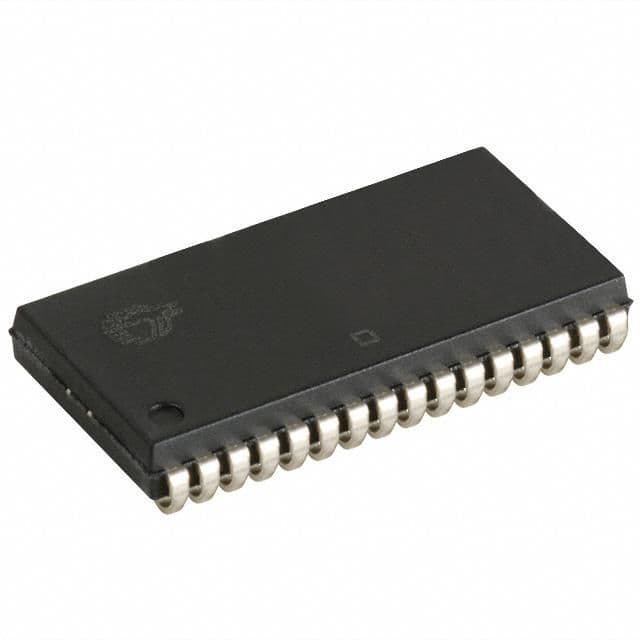

Product Images
