4Mb Synchronous SRAM with 8ns access time, operating at 100MHz. This surface-mount component features a 17-bit address bus, 32-bit word size, and a 3.3V operating supply voltage, supporting a range of 3.135V to 3.6V. Packaged in a 100-pin TQFP, it offers 4 ports and is RoHS compliant.
Frequency100MHz
PackageTQFP
Current205mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Cypress CY7C1338G-100AXC technical specifications.
General
Access Time
8ns
Access Time-Max
8ns
Address Bus Width
17b
Package/Case
TQFP
Density
4Mb
Frequency
100MHz
Interface
Parallel
Lead Free
Lead Free
Max Frequency
100MHz
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Max Supply Voltage
3.6V
Memory Size
4Mb
Memory Type
SDR, , Volatile, SRAM
Min Supply Voltage
3.135V
Mount
Surface Mount
Number of Ports
4
Number of Words
128000
Operating Supply Voltage
3.3V
Package Quantity
72
Packaging
Tray
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Supply Current
205mA
Supply Voltage-Nom
3.3V
Sync/Async
Synchronous
Temperature Grade
COMMERCIAL
Word Size
32b
Compliance
RoHS
Compliant
Datasheet
Cypress CY7C1338G-100AXC Datasheet
Download the complete datasheet for Cypress CY7C1338G-100AXC to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

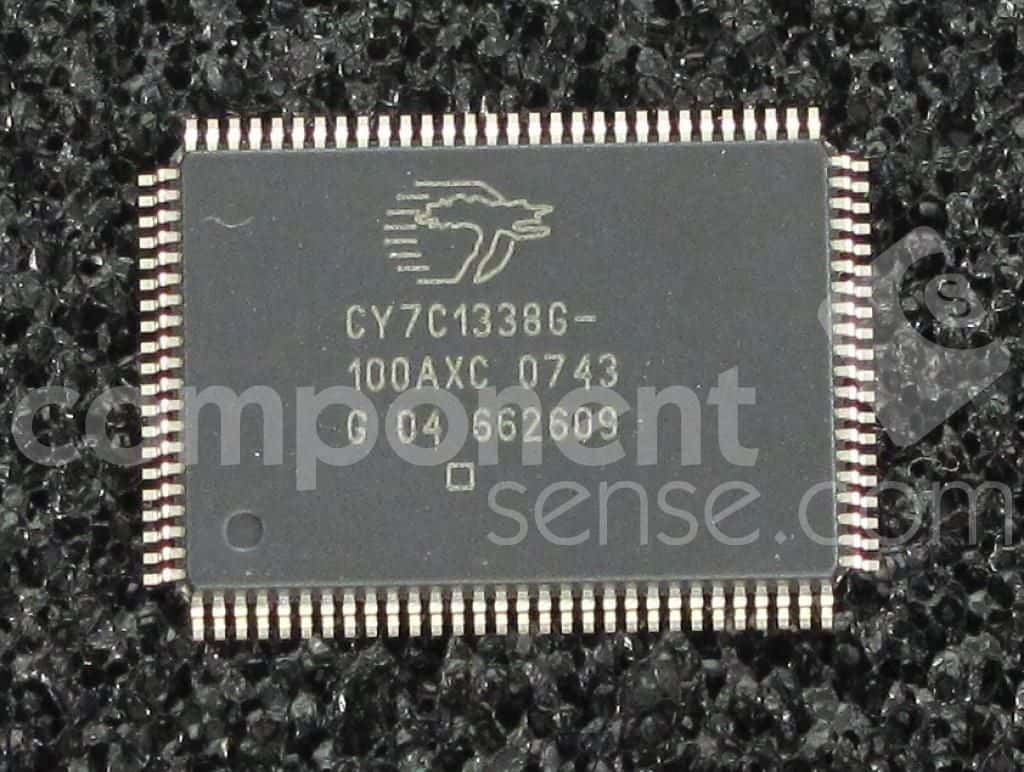

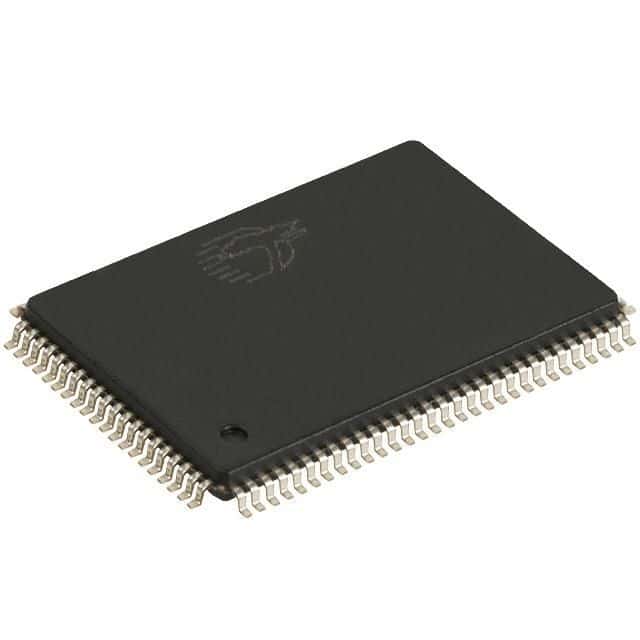

Product Images
