18Mb CMOS SRAM with a 3.4ns access time, operating at 167MHz. This synchronous, pipelined architecture memory features a 512K x 36 configuration and a parallel interface. Packaged in a 100-pin TQFP (14x20mm), it supports a 3.3V operating voltage and is surface mountable. RoHS compliant and lead-free, it is suitable for commercial temperature ranges.
Frequency167MHz
PackageTQFP
Current275mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Cypress CY7C1380D-167AXC technical specifications.
General
Access Time
3.4ns
Access Time-Max
3.4ns
Additional Feature
PIPELINED ARCHITECTURE
Address Bus Width
19b
Package/Case
TQFP
Density
18Mb
Frequency
167MHz
Interface
Parallel
JESD-30 Code
R-PQFP-G100
Lead Free
Lead Free
Max Frequency
167MHz
Max Operating Temperature
70°C
Max Supply Current
275mA
Max Supply Voltage
3.6V
Memory Size
18Mb
Memory Type
Volatile, , SRAM, SDR
Memory Width
36
Min Operating Temperature
0°C
Min Supply Voltage
3.135V
Moisture Sensitivity Level
3
Mount
Surface Mount
Number of Functions
1
Number of Ports
4
Number of Words
512000
Operating Supply Voltage
3.3V
Package Body Material
Plastic
Package Shape
Rectangular
Packaging
Tray
Parallel/Serial
PARALLEL
Peak Reflow Temperature (Cel)
260°C
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Supply Current
275mA
Supply Voltage-Nom
3.3V
Surface Mount
Yes
Sync/Async
Synchronous
Technology
CMOS
Temperature Grade
COMMERCIAL
Terminal Finish
Nickel
Terminal Form
Gull Wing
Terminal Position
QUAD
Time @ Peak Reflow Temperature-Max (s)
20s
Weight
0.023175oz
Width
14mm
Word Size
36b
Compliance
RoHS
Compliant
Datasheet
Cypress CY7C1380D-167AXC Datasheet
Download the complete datasheet for Cypress CY7C1380D-167AXC to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

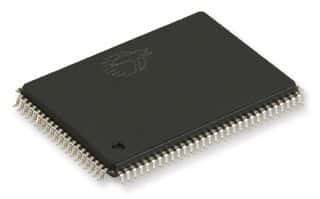

Product Images
