Cypress
CY7C1381F-133BGCT

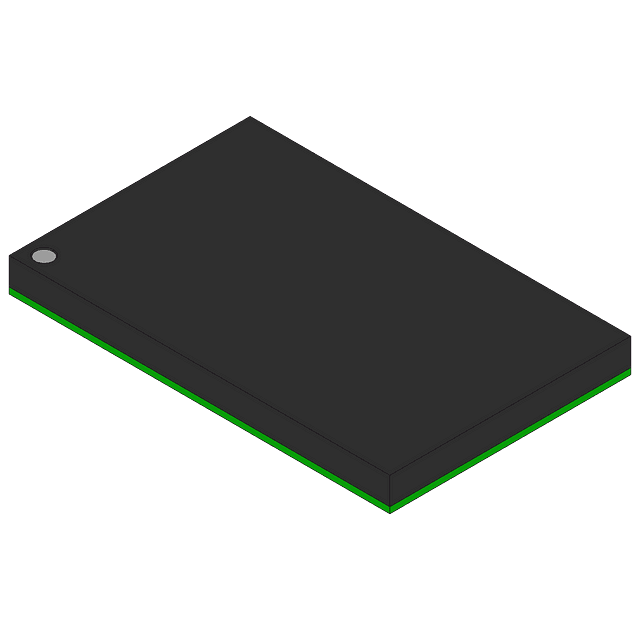

Standard SRAM, 512KX36, 6.5ns, CMOS, PBGA119, 14 X 22 MM, 2.40 MM HEIGHT, BGA-119
Frequency133MHz
PackageBGA
MountingSurface Mount
Quick Jump:
Technical Specifications
Cypress CY7C1381F-133BGCT technical specifications.
General
Access Time
6.5ns
Access Time-Max
6.5ns
Package/Case
BGA
Density
18Mb
Frequency
133MHz
Lead Free
Contains Lead
Max Frequency
133MHz
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Max Supply Voltage
3.6V
Memory Size
18Mb
Memory Type
Volatile, , SRAM
Min Supply Voltage
3.135V
Mount
Surface Mount
Package Quantity
500
Packaging
Tape and Reel
RoHS Compliant
No
Supply Voltage-Nom
3.3V
Temperature Grade
COMMERCIAL
Compliance
RoHS
Not Compliant
Datasheet
Cypress CY7C1381F-133BGCT Datasheet
Download the complete datasheet for Cypress CY7C1381F-133BGCT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
Product Images
