36Mb QDR SRAM, 1Mx36 configuration, offering a fast 0.45ns access time and operating at up to 250MHz. This synchronous memory features a parallel interface, a 19-bit address bus, and dual ports for enhanced performance. Packaged in a lead-free FBGA (165-ball) for surface mounting, it operates from a 1.7V to 1.9V supply voltage range with a nominal of 1.8V. Designed for commercial temperature ranges (0°C to 70°C), this RoHS compliant component is ideal for high-speed data buffering and storage applications.
Frequency250MHz
PackageFBGA
Current730mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Cypress CY7C1414KV18-250BZXC technical specifications.
General
Access Time
0.45ns
Access Time-Max
0.45ns
Address Bus Width
19b
Package/Case
FBGA
Density
36Mb
Frequency
250MHz
Interface
Parallel
Lead Free
Lead Free
Max Frequency
250MHz
Max Operating Temperature
70°C
Max Supply Voltage
1.9V
Memory Size
36Mb
Memory Type
QDR, , RAM
Min Operating Temperature
0°C
Min Supply Voltage
1.7V
Mount
Surface Mount
Number of Ports
2
Operating Supply Voltage
1.8V
Package Quantity
136
Packaging
Tray
Radiation Hardening
No
RoHS Compliant
Yes
Supply Current
730mA
Supply Voltage-Nom
1.8V
Sync/Async
Synchronous
Temperature Grade
COMMERCIAL
Word Size
36b
Compliance
RoHS
Compliant
Datasheet
Cypress CY7C1414KV18-250BZXC Datasheet
Download the complete datasheet for Cypress CY7C1414KV18-250BZXC to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

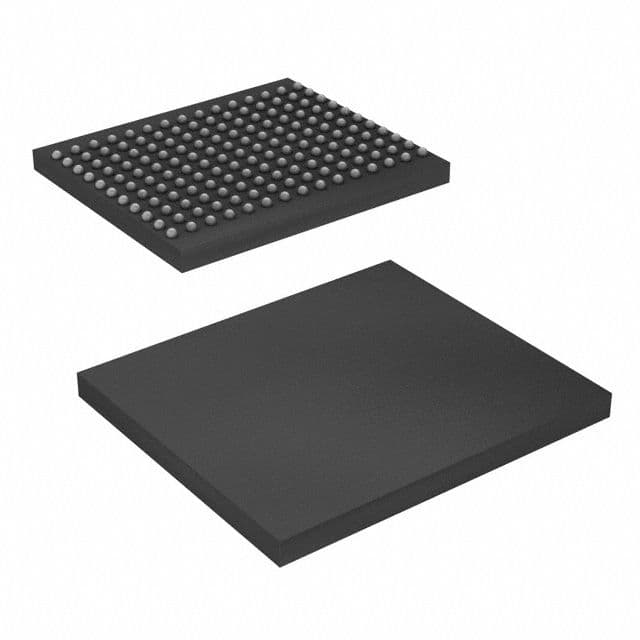

Product Images
